製品情報

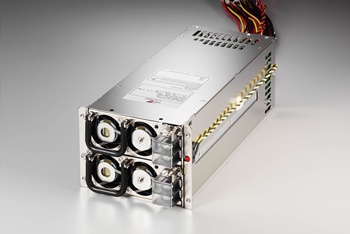

DM1Z2-5500V3V(500W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant DC
製品説明

製品仕様

wattage 500W
solution Server ,Workstation ,Storage System ,PCs ,Communication ,Networking
dimension_mm 265x101x84
dimension_inch 10.43x3.98x3.31
input_spec VOLTAGE: -36 ~ -72 VDC, NORMAL -48VDC INPUT CURRENT:20A(RMS)MAXIMUM AT -36 TO -72VDC INRUSH CURRENT:30A AT -48VDC (AT 25 DEGREES AMBIEND COLD START)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.524± 5%± 1%50mV+12V140± 5%± 1% 120mV -12V00.8±5%± 1%120mV+3.3V024±5%± 1%50mV+5VSB03.5± 5%± 1%50mV


features * TEMPERATURE RANGE:OPERATING 0℃~50℃,STORAGE -20℃~80℃
* HOLD UP TIME:5V MUST BE MAINTAIN 1.6 mS MIN IN REGULATOIN LIMIT AT INPUT NORMAL VOLTAGE
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 minute INPUT TO FRAME GROUND 1500 VAC FOR 1 minute
* EFFICIENCY:>85% TYPICAL,AT INPUT -48V FULL LOAD
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500mS,OFF DELAY 1mS
* OVER POWER PROTECTION:110~160% MAX
* OVER VOLTAGE PROTECTION:+5V→5.7V~6.5V,+3.3V→4.0V~5.7V ,+12V→14.3V~17.3V
* OVER CURRENT PROTECTION:+5V,+12V,+3.3V
* SHORT CIRCUIT: +5V, +3.3V, +12V, -12V
* EMI : FCC CLASS A , CISPR 22 CLASS A
* SAFETY:TO MEET UL, TUV, IEC 60950
* REMOTE ON / OFF CONTROL
* WARMING METHOD: AUDIO ALARM, TTL, LOW ACTIVE
* DC INLET IN EACH MODULE


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/DM1Z2VMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/DM1Z-V%20&%20DM1ZX-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/DM1Z-V%20&%20DM1ZX-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/DM1Z-V%20&%20%20DM1ZX-V%20CCC.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/DM1Z2-5500V3V.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/DM1Z2-5500V3V(RoHS).pdf
