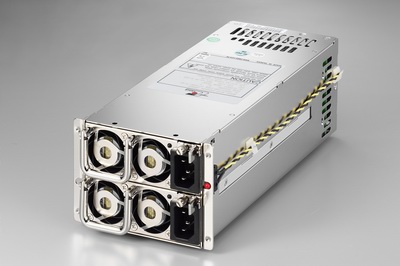

P1Z2-6400P(400W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 400W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 265x101x84
dimension_inch 10.43x3.98x3.31
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY : 47 ~ 63 HZ INPUT CURRENT: 8.0 A ( RMS ) FOR 115VAC; 5.0 A ( RMS ) FOR 230VAC INRUSH CURRENT: 60A MAX. FOR 115 VAC; 80 A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V3.025±5%±1%50mV+12V228±6%±1% 100mV -5V0.10.5± 10%±1%150mV-12V0.10.8+5, -7%±1%100mV+3.3V1.020±5%±1%50mV+5VSB0.12±5%±1%50mV
features * TEMPERATURE RANGE: OPERATING 0℃ --- 40℃, STORAGE -20℃ - 80℃
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: 65% TYPICAL AT 115V, FULL LOAD
* REMOTE ON/OFF CONTROL
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION: +5V: 5.7~6.7V, +3.3V: 3.7~4.7V, +12V: 13~15V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, AUTO-RECOVERED: -5V, -12V, +5VSB
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* SAFETY: TO MEET UL, TUV, CB *ACTIVE POWER FACTOR CORRECTION MEET IEC-1000-3-2 CLASS D

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
