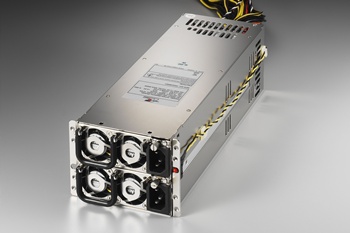

MTW2-5760V3V(760W)
製品種別 | 電源 (Zippy) |
---|---|
電源の種類 | 2U Redundant |
製品説明 |
製品仕様
wattage | 760W |
---|---|
solution | Server ,Workstation ,Storage System ,Blade server ,Communication |
dimension_mm | 300x101x84 |
dimension_inch | 11.81x3.98x3.31 |
input_spec | VOLTAGE: 90~264VAC FULL RANGE FREQUENCY: 47~63HZ INPUT CURRENT (PER POWER MODULE):12/6A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE):40/60A MAX. FOR 115/230VAC (25℃) |
dc_output |
|
features | * TEMPERATURE RANGE:OPERATING 0℃~45℃, STORAGE -20℃~80℃ * HOLD UP TIME:16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE * DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE * EFFICIENCY:>80% AT 115VAC, 30%~100% MAX LOAD * POWER GOOD SIGNAL:ON DELAY 100mS TO 500Ms * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION:+3.3V→3.9V~4.7V,+5V→5.7V~6.5V ,+12V→12.8 V~13.9V * OVER CURRENT PROTECTION: +5V,+12V,+3.3V 110~ 160% AT FULL LOAD * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V * REMOTE ON / OFF CONTROL * BALANCE LOAD SHARING DESIGN * HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION * ISOLATION: BUILT-IN THE POWER MODULE * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * COOLING:38*28mm, TWO DC FAN (MODULE) * EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B * MEET IEC-1000-3-2 CLASS D (ACTIVE PFC) * SAFETY:TO MEET UL, TUV, IEC60950 *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/MTW-V%20&%20MTW2-V%20&%20MTW4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MTW-V%20&%20MTW2-V%20&%20MTW4-V%20TUV.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MTW2-5760V3V(RoHS).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/MTW2-V3V%20CCC.pdf |
