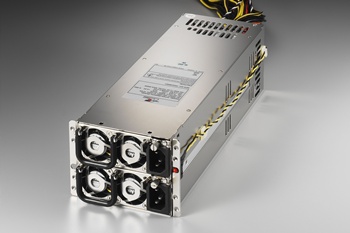

MTW2-5900V3V(900W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 900W |
|---|---|
| solution | Server ,Workstation ,Storage System ,Blade server ,Communication |
| dimension_mm | 300x101x84 |
| dimension_inch | 11.81x3.98x3.31 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT (PER POWER MODULE)：14/7A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE)：40/60A MAX. FOR 115/230VAC (25℃) |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～45℃, STORAGE -20℃~80℃ * HOLD UP TIME：16mS IN REGULATOIN LIMIT AT 90VAC INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE * EFFICIENCY：>80% AT 115VAC, 30%~100% MAX LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500Ms * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION：+3.3V→3.9V～4.7V，+5V→5.7V～6.5V ，+12V→12.8 V～13.9V * OVER CURRENT PROTECTION: +5V,+12V,+3.3V 110~ 160% AT FULL LOAD * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V * REMOTE ON / OFF CONTROL * BALANCE LOAD SHARING DESIGN * HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION * ISOLATION: BUILT-IN THE POWER MODULE * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * COOLING:38*28mm, TWO DC FAN (MODULE) * EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B * MEET IEC-1000-3-2 CLASS D (ACTIVE PFC) * SAFETY：TO MEET UL, TUV, IEC60950 *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/MTW-V%20&%20MTW2-V%20&%20MTW4-V%20TUV.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/MTW2-5900V3V(RoHS).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/MTW2-V3V%20CCC.pdf |
