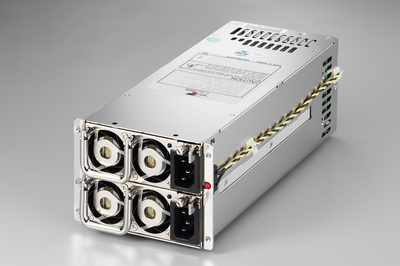

M1W2-5600V3V(600W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 600W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 300x101x84 |
| dimension_inch | 11.81x3.98x3.31 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 4.0 A (RMS) FOR 230 VAC 9.0A (RMS) FOR 115 VAC INRUSH CURRENT: 35A MAX. FOR 115 VAC PER MODULE 70A MAX. FOR 230 VAC PER MODULE POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 230V, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE: OPERATING 0℃ --- 40℃, STORAGE –20℃ --- 80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: >80% TYPICAL AT 115VAC, 20%~100% MAX LOAD. * LEAKAGE CURRENT: 3.6MA. MAX AT NOMINAL VOLTAGE 250VAC * REMOTE ON/OFF CONTROL * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110~180% * OVER VOLTAGE PROTECTION: +5V→5.9V~6.7V, +3.3V→3.9~4.3V, +12V→13~15V * OVER CURRENT PROTECTION: +3.3V→27.5~37.5A, +5V→27.5~37.5A, +12V→51.7~70.5A * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * SAFETY: TO MEET UL, TUV, CB * EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1W2-5600V3V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1W2-5600V3V%20FCC.pdf |
