製品情報

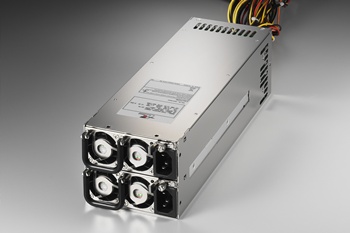

G1W2-5C00V3V(1200W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 1200W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 300x101.2x84
dimension_inch 11.81x3.98x3.31
input_spec VOLTAGE: 100~240VAC / 200~240VAC FULL RANGE(WITH ± 10% TOLERANCE, OUTPUT 1010W/1200W) FREQUENCY: 47~63HZ INPUT CURRENT (PER POWER MODULE):15/7A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE):60/80A MAX. FOR 115/230VAC (25℃)
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.536±5%± 1%50mV+12V298± 5%± 1% 120mV -12V00.8± 10%± 1%120mV+3.3V0.536± 5%± 1%50mV+5VSB0.13.5± 5%± 1%50mV
+5V AND +3.3V TOTAL OUTPUT MAX: 210W TOTAL OUTPUT MAX: 1200W

features * TEMPERATURE RANGE:OPERATING 0℃~40℃, STORAGE -20℃~80℃
* HOLD UP TIME:12mS MIN.
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE
* EFFICIENCY:>80% AT 115V, 20%~100% MAX LOAD.
* POWER GOOD SIGNAL:ON DELAY 100mS TO 500Ms
* OVER POWER PROTECITON: 110~160%
* OVER VOLTAGE PROTECTION:+3.3V→3.7V~4.1V,+5V→5.7V~6.2V ,+12V→13.3 V~14.3V
* OVER CURRENT PROTECTION: +5V→39~54A, +12V→107~147A, +3.3V→39~54A
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
* REMOTE ON / OFF CONTROL
* REMOTE SENSING DESIGN
* BALANCE LOAD SHARING DESIGN
* HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
* ISOLATION: BUILT-IN THE POWER MODULE
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B
* MEET IEC-1000-3-2 CLASS D (ACTIVE PFC)
* SAFETY:TO MEET UL, TUV, CB IEC 60950

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/G1W2MA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/T1W2-V,%20CDW2-V,G1W2-V,G1F2-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/T1W2-V,%20CDW2-V,G1W2-V,G1F2-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/T1W2-V,%20CDW2-V,G1W2-V%20CCC.pdf MTBF(RoHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/G1W2-5C00V3V(RoHS)(50%e2%84%83).pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/G1W2-5C00V3V(RoHS).pdf
