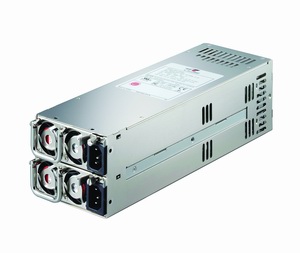

M1W2-5E00V3V(1400W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 1400W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 300x101.2x84 |
| dimension_inch | 11.81x3.98x3.31 |
| input_spec | VOLTAGE： 115～240VAC(with +/-10%tolerance) FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT (PER POWER MODULE)：15/10A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE)：15/30A MAX. FOR 115/230VAC (25℃) |
| dc_output |
* POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1400W FOR 180~264VAC * POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1200W FOR 103~132VAC |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃，STORAGE TEMPERATURE：-20℃～80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 17mSEC IN REGULATION LIMIT AT 115 VAC INPUT VOLTAGE AND 1000W OUTPUT LOAD * EFFICIENCY：90% TYPICAL AT 230V, 50% OF FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS * OVER POWER PROTECTION：110～150% MAX * OVER VOLTAGE PROTECTION： +12V→12.8V～13.9V, +5V→5.7V～6.5V, +3.3V：3.7V～4.1V * OVER CURRENT PROTECTION：110％～150％ * SHORT CIRCUIT PROTECTION： +5V, +3.3V, +12V * EMI NOISE FILTER : FCC CLASS B, CISPR22 CLASS B * SAFETY : TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1W-2810V,M1W2-V,M1W4-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1W-2810V,M1W2-V,M1W4-V%20TUV.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1W2-5E00V3V%20(+Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1W2-5E00V3V%20FCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W2-5E00V3V(RoHS).pdf |
