製品情報

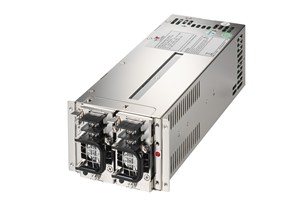

DR2G-5600V4V(600W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant DC
製品説明

製品仕様

wattage 600W
solution Server ,Workstation ,Storage System
dimension_mm 276x101x82
dimension_inch 10.87x3.98x3.23
input_spec VOLTAGE: -36 ~ -72 VDC STEADY-STATE CURRENT: -36~-72VDC / 25~10AMP (15A @ -48VDC) INRUSH CURRENT: 35A AT -48VDC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.525±5%±1%50mV+12V248±5%±1% 120mV -12V00.8±5%±1%120mV+3.3V0.525±5%±1%50mV+5VSB0.13.5±5%±1%50mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 170W
* TOTAL OUTPUT MAX: 600W


features * TEMPERATURE RANGE: OPERATING: 0℃ ~ 50℃, STORAGE: -20℃ ~ 80℃, OPERATING TEMPERATURE FROM 0℃ SHOULD START FROM DC-48V
* HOLD UP TIME: 1 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: >80% TYPICAL AT -48VDC FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION: +5V: 5.9~6.7V, +3.3V: 3.9~4.3V, +12V: 13~15V
* OVER CURRENT PROTECTION: +3.3V: 27.5~37.5A, +5V: 27.5~37.5A, +12V: 52.8~76.8A
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, AUTO-RECOVERED: +5VSB
* SAFETY: TO MEET UL, CUL, TUV
* REMOTE ON/OFF CONTROL
* WARNING METHOD: AUDIO ALARM, FAULT LED, TTL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/DR2GVMA03.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/DGIN-3600V,BR2G-V,DR2G-V%20CB.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/DR2G-5600V4V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/DR2G-5600V4V%20FCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/DGIN-3600V,BR2G-V,DR2G-V%20TUV.pdf
