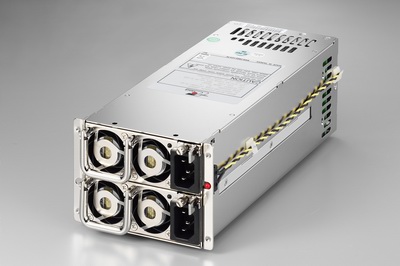

M1W2-5600G0V(600W)
製品種別 | 電源 (Zippy) |
---|---|
電源の種類 | 2U Redundant |
製品説明 |
製品仕様
wattage | 600W |
---|---|
solution | Server ,Workstation ,Storage System ,IPC |
dimension_mm | 300x101.2x84 |
dimension_inch | 11.81x3.98x3.31 |
input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 4.0 A (RMS) FOR 230 VAC 8.0A (RMS) FOR 115 VAC INRUSH CURRENT: 60A MAX. FOR 115 VAC PER MODULE 80A MAX. FOR 230 VAC PER MODULE POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 230V, FULL LOAD |
dc_output |
* TOTAL OUTPUT MAX: 600W |
features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 40℃, STORAGE –20℃ ~ 80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: ONE MODULE TYPICAL >86% TYPICAL AT 230VAC, 20%~100% MAX LOAD. * LEAKAGE CURRENT: 3.5MA. MAX AT NOMINAL VOLTAGE 250VAC * REMOTE ON/OFF CONTROL * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION: +5V→5.7V~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V * OVER CURRENT PROTECTION: +3.3V→27~38A, +5V→35~48A, +12V→55~75A * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * SAFETY: TO MEET UL, TUV, CB, CCC * EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/M1W2GMA00.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1W-G%20and%20M1W2-G%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1W2-G%20CCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1W-G%20and%20M1W2-G%20TUV.pdf MTBF(RoHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1W2-5600G0V(RoHS)(50%e2%84%83).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/M1W2-5600G0V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/M1W2-5600G0V%20FCC.pdf |
