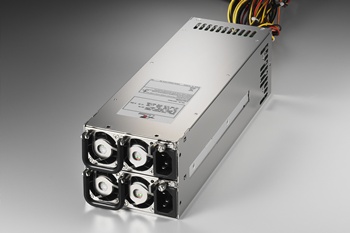

G1W2-5860V2V(860W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 860W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 300x101.2x84
dimension_inch 11.81x3.98x3.31
input_spec VOLTAGE: 90V ~ 264VAC (WITH ± 10% TOLERANCE) FREQUENCY: 47Hz ~ 63Hz INPUT CURRENT: 13/6.5A MAX AT ANY LOW/HIGH INPUT VOLTAGE INRUSH CURRENT: 40/60A @ 115/230VAC (25℃) POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.532±5%± 1%50mV+12V270± 5%± 1% 120mV -12V00.8± 10%± 1%120mV+3.3V0.532± 5%± 1%50mV+5VSB0.13.5± 5%± 1%50mV
+5V AND +3.3V TOTAL OUTPUT MAX: 190W
TOTAL OUTPUT MAX: 860W

features * TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃
* HOLD UP TIME: 16mS MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: 85% TYPICAL AT 230VAC FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* REMOTE ON/OFF CONTROL
* OVER POWER PROTECTION:110%~150%
* OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V;
* SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
* OVER CURRENT PROTECTION: +5V→35~48A, +12V→77~105A, +3.3V→35~48A
* SAFETY: TO MEET UL, CUL, TUV, CCC
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 240VAC
* EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
* WARMING METHOD: BUZZER SOUND, TTL, FAULT LED


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/T1W2-V,%20CDW2-V,G1W2-V,G1F2-V%20TUV.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/T1W2-V,%20CDW2-V,C2W,G1W2-V%20CB.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/G1W2-5860V2V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/G1W2-5860V2V%20FCC.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/T1W2-V,%20CDW2-V,G1W2-V%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/T1W2-V,%20CDW2-V,G1W2-V,G2W-V%20CCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/T1W2-V,%20CDW2-V,G1W2-V,G1F2-V%20TUV.pdf
