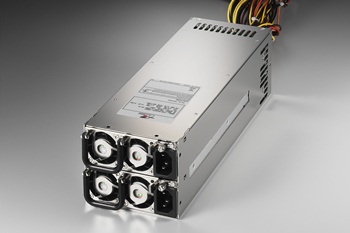

G1W2-5A10V2V(1010W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 1010W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 300x101.2x84 |
| dimension_inch | 11.81x3.98x3.31 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT (PER POWER MODULE)：15A/7A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE)：40/60AMPS MAX. FOR 115/230VAC (25℃) PFC: UP TO THE TARGET OF 95% @115/230VAC, FULL LOAD |
| dc_output |
* TOTAL OUTPUT MAX: 1010W |
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃ * EFFICIENCY：85% AT 230V FULL LOADING * OVER POWER PROTECITON: 110~160% * OVER VOLTAGE PROTECTION * OVER CURRENT PROTECTION * SHORT CIRCUIT PROTECTION * REMOTE ON / OFF CONTROL * REMOTE SENSING DESIGN * BALANCE LOAD SHARING DESIGN * HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION * ISOLATION: BUILT-IN THE POWER MODULE * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B * MEET IEC-1000-3-2 CLASS D (ACTIVE PFC) * SAFETY：TO MEET UL, TUV, CB IEC 60950 *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/T1W2-V,%20CDW2-V,G1W2-V,G1F2-V%20TUV.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/T1W2-V,%20CDW2-V,C2W,G1W2-V%20CB.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/T1W2-V,%20CDW2-V,G1W2-V%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/T1W2-V,%20CDW2-V,G1W2-V,G2W-V%20CCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/T1W2-V,%20CDW2-V,G1W2-V,G1F2-V%20TUV.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/G1W2-5A10V2V(RoHS).pdf CE (Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/G1W2-5A10V2V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/G1W2-5A10V2V%20FCC.pdf |
