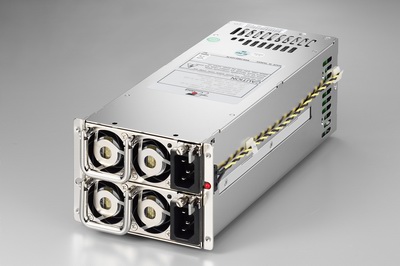

M1X2-5550V2V(550W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 550W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 240x101x84 |
| dimension_inch | 9.45x3.98x3.31 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE. FREQUENCY: 47 ~ 63 Hz. INPUT CURRENT: 8A (RMS) FOR 115 VAC / 4A (RMS) FOR 230 VAC INRUSH CURRENT: 30A MAX. FOR 115 VAC PER MODULE / 60A MAX. FOR 230 VAC PER MODULE POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 115V AND 90% AT 230V, FULL LOAD |
| dc_output |
* TOTAL OUTPUT MAX: 550W |
| features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃ * HOLD UP TIME: 16mS MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: THE MAXIMUM POWER SUPPLY SYSTEM EFFICIENCY SHALL BE 80%, MEASURED AT NOMINAL INPUT VOLTAGE 230V AND FULL LOADING. * LEAKAGE CURRENT: 3.5mA. MAX AT NOMINAL VOLTAGE 240VAC AND 60Hz. * REMOTE ON/OFF CONTROL * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms * OVER POWER PROTECTION: 110~160% * OVER VOLTAGE PROTECTION * OVER CURRENT PROTECTION: +3.3V/+5V/+12V:110~160% * SAFETY: TO MEET UL/CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/M1X%20&%20M1X2%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/M1X2-V%20CCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/M1X%20&%20M1X2%20TUV.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/M1X2-5550V2V(RoHS).pdf |
