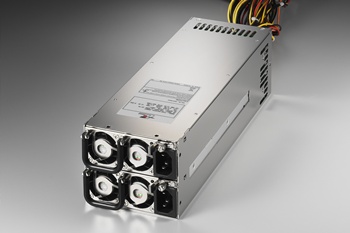

T1W2-5A10V2V(1010W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 1010W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 300x101.2x84
dimension_inch 11.81x3.98x3.31
input_spec VOLTAGE： 90～240VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT (PER POWER MODULE)：15A/7A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE)：40/60AMPS MAX. FOR 115/230VAC (25℃) PFC: Up to the target of 95% @115/230VAC, full load.
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.532±5%±1%50mV+12V283±5%±1% 120mV -12V00.8±5%±1%120mV+3.3V0.532±5%±1%50mV+5VSB0.13.5±5%±1%50mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 190W
* TOTAL OUTPUT MAX: 1010W

features * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃
* EFFICIENCY：85% AT 230V FULL LOADING
* OVER POWER PROTECITON: 110~160%
* OVER VOLTAGE PROTECTION
* OVER CURRENT PROTECTION
* SHORT CIRCUIT PROTECTION
* REMOTE ON / OFF CONTROL
* REMOTE SENSING DESIGN
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B
* SAFETY：TO MEET UL, TUV, CB IEC 60950

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/T1W2-V,%20CDW2-V,G1W2-V%20CB.pdf
