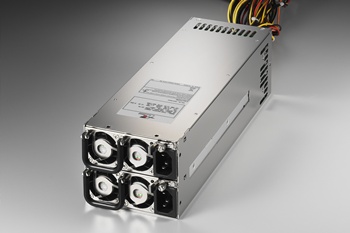

G1W2-5C00V2V(1200W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 1200W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 300x101.2x84 |
| dimension_inch | 11.81x3.98x3.31 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT: 15A (RMS) FOR 115V / 7A (RMS) FOR 230V INRUSH CURRENT (PER POWER MODULE)：60/80 AMPS@115/230 VAC (at 25 degrees ambient cold start for each power unit) PFC: Up to the target of 95% @115/230VAC, full load |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃ * EFFICIENCY：82% AT 230V FULL LOADING * POWER GOOD SIGNAL：ON DELAY 100mS TO 500Ms * OVER POWER PROTECITON: 110~150% * OVER VOLTAGE PROTECTION * OVER CURRENT PROTECTION * REMOTE ON/OFF CONTROL * FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL * EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B * MEET IEC 61000-3-2 CLASS D (ACTIVE PFC) * SAFETY：TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/T1W2-V,%20CDW2-V,G1W2-V,G1F2-V%20TUV.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/T1W2-V,%20CDW2-V,C2W,G1W2-V%20CB.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/T1W2-V,%20CDW2-V,G1W2-V%20CB.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/T1W2-V,%20CDW2-V,G1W2-V,G2W-V%20CCC.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/T1W2-V,%20CDW2-V,G1W2-V,G1F2-V%20TUV.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/G1W2-5C00V2V(RoHS).pdf |
