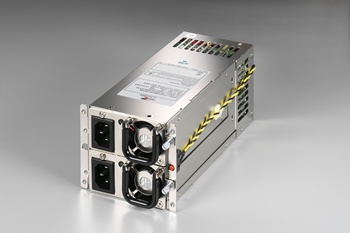

R1S2-2507V54(500W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 2U Redundant |
| 製品説明 |
製品仕様
| wattage | 500W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 217x85x84 |
| dimension_inch | 8.54x3.35x3.31 |
| input_spec | VOLTAGE： 100～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：6.5A (RMS) FOR 115 VAC / 3.5A (RMS) FOR 230 VAC INRUSH CURRENT：30A MAX. FOR 115 VAC PER MODULE / 60A MAX. FOR 230 VAC PER MODULE PFC: Up to the target of 95% @115V & 90% @230V, full load |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 13mS IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：Shall be 88.6%, measured at nominal input voltage 230V and full loading * LEAKAGE CURRENT: 3.5mA. MAX. AT NOMINAL VOLTAGE 250VAC * OVER POWER PROTECTION：110～160% MAX * OVER VOLTAGE PROTECTION: +54V→+59.4~+70.2V * SHORT CIRCUIT PROTECTION * SAFETY: MEET UL 60950, CUL, TUV EN-60950, CCC * WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1S2-2507V54(RoHS).pdf |
