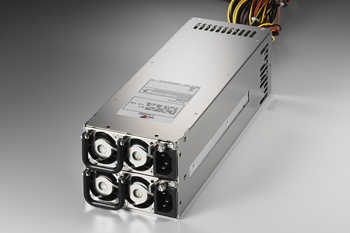

G1W2-5AE0G2V(1500W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant
製品説明

製品仕様

wattage 1500W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 300x101.2x84
dimension_inch 11.81x3.98x3.31
input_spec VOLTAGE： 104～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT (PER POWER MODULE)：15A/10.5A FOR 115/230VAC INRUSH CURRENT (PER POWER MODULE)：40A/80A MAX. FOR 115/230VAC (at 25 degrees ambient cold start for each power unit) PFC: Up to the target of 95% @115/230VAC, full load
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V136±5%±1%50mV+12V2124±5%±1% 120mV -12V00.8±10%±1%120mV+3.3V136±5%±1%50mV+5VSB0.13.5±5%±1%50mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 210W
* Total power: 1500W (MAX) @ 230VAC / 1200W (MAX) @ 115VAC

features * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃
* HOLD UP TIME：14mS MIN.
* EFFICIENCY：SHALL BE 82% AT 230V AND FULL LOADING
* OVER POWER PROTECITON: 110~160%
* OVER VOLTAGE PROTECTION：+3.3V→+3.9V～+4.3V，+5V→+5.9V～+6.5V，+12V→+13.3V～+15V
* OVER CURRENT PROTECTION: 110~150%
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
* REMOTE ON/OFF CONTROL
* EMI NOISE FILTER: FCC CLASS B , CISPR 22 CLASS B
* MEET EN61000-3-2 CLASS D (ACTIVE PFC)
* SAFETY：TO MEET UL, CUL, TUV, CCC

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/G1W2-5AE0G2V(RoHS).pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/G1W2GMA00.pdf
