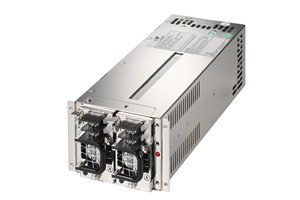

R2G-5600V4V(600W)

製品種別 電源 (Zippy)
電源の種類 2U Redundant DC
製品説明

製品仕様

wattage 600W
solution Server ,Workstation ,Storage System
dimension_mm 276x101x82
dimension_inch 10.87x3.98x3.23
input_spec VOLTAGE: FULL RANGE 100~240 VAC FREQUENCY: 50Hz/60Hz (+/-3Hz) STEADY-STATE CURRENT: 9.0~4.0 AMPS MAXIMUM AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 35A/70A @ 115/230 VAC POWER FACTOR CORRECTION: PHC CAN REACH THE TARGET OF 95% @ 230V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.525.0±5%±50mV50mV+12V2.048.0±5%±120mV 120mV -12V0.20.8±10%±120mV120mV+3.3V0.525.0±5%±50mV50mV+5VSB0.13.5±5%±50mV50mV
* +5V AND +3.3V TOTAL OUTPUT MAX: 170W
* TOTAL OUTPUT MAX: 600W

features * TEMPERATURE RANGE: OPERATING: 0 ℃ ~ 40 ℃, STORAGE: -20 ℃ ~ 80 ℃
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: >80% TYPICAL AT 115V, 20~100% MAX LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms
* OVER POWER PROTECTION: 110~180%
* OVER VOLTAGE PROTECTION: +5V: 5.9~6.7V, +3.3V: 3.9~4.3V, +12V: 13~15V
* OVER CURRENT PROTECTION: +3.3V: 27.5~37.5A, +5V: 27.5~37.5A, +12V: 52.8~76.8A
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V
* SAFETY: TO MEET UL, CUL, TUV, CCC
* REMOTE ON/OFF CONTROL
* WARNING METHOD: AUDIO ALARM, FAULT LED, TTL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MANUAL:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MANUAL/R2G%20&%20R3G%20Series2008.doc FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/R2G-5600V4V%20FCC.pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/GIN-3600V,R2G-V,R3G-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/GIN-3600V,R2G-V,R3G-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/GIN-3600V,R2G-V,R3G-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R2G-5600V4V(RoHS).pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R2G-5600V4V%20(+Radiation).pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R2G-5600V4V%20(Radiation).pdf MTBF(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R2G-5600V4V(RoHS)(40%e2%84%83).pdf MTBF(RoHS)(40℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R2G-5600V4V(RoHS)(BP)(40%e2%84%83).pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R2G-5600V4V(RoHS)(BP).pdf BSMI:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/BSMI/GIN-3600V,R2G-V,R3G-V%20BSMI.pdf
