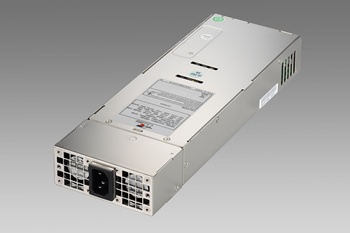

P1D-5600V(600W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 1U Single |
| 製品説明 |
製品仕様
| wattage | 600W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 300x100x40.5 |
| dimension_inch | 11.81x3.94x1.59 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY : 47 ~ 63 HZ INPUT CURRENT: 10/5A AT ANY LOW/HGIH RANGE INPUT VOLTAGE INRUSH CURRENT: 30A/60A @115/230VAC POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% @115V, FULL LOAD, FOLLOWING THE STANDARD |
| dc_output |
* TOTAL OUTPUT POWER OF V1 AND V2 NOT EXCEED 600W * THE OUTPUT CURRENT OF 5V & 3.3V NOT EXCEED 40A |
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃ * HOLD UP TIME：16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND * EFFICIENCY：TYPICAL 80-83% AT 25℃ 115V FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS * OVER POWER PROTECTION：110～150% MAX * OVER VOLTAGE PROTECTION：+5V→5.6V～6.5V, +3.3V→3.6V～4.3V, +12V→13.2V～15V * SHORT CIRCUIT PROTECTION：+5V +12V +3.3V * RESTART AFTER PROTECTION: OPP/OVP * EMI NOISE FILTER : FCC CLASS A, CISPR22 CLASS A * SAFETY: TO MEET UL, CUL, TUV, CCC * REMOTE ON/OFF CONTROL THE POWER SUPPLY SHALL ACCEPT A LOGIC OPEN COLLECTOR LEVEL WHICH WILL DISABLE/ENABLE ALL THE OUTPUT VOLTAGE (EXCLUDE +5V STAND BY). AS LOGIC LEVEL IS LOW，OUTPUTS VOLTAGE WERE ENABLE， AS LOGIC LEVEL IS HIGH，OUTPUTS VOLTAGE WERE DISABLE. * 3.3V & 5V REMOTE SENSING * COOLING: ONE 40mm DC FANS * MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P1D0MA00.pdf |
