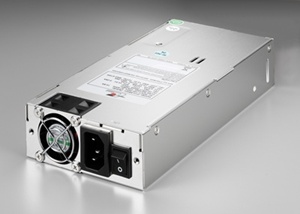

P1H-5507V(500W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 1U Single |
| 製品説明 |
製品仕様
| wattage | 500W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 225x100x40.5 |
| dimension_inch | 8.86x3.94x1.59 |
| input_spec | VOLTAGE：90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：10A (RMS) FOR 115 VAC / 5A (RMS) FOR 230 VAC INRUSH CURRENT：40A MAX. FOR 115 VAC / 60A MAX. FOR 230 VAC POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% AT 230V, FULL LOAD |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃ * HOLD UP TIME：16mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE * DIELECTRIC WITHSTAND：INPUT/OUTPUT 1800 VAC FOR 1 SECOND INPUT TO FRAME GROUND 1800 VAC FOR 1 SECOND * EFFICIENCY：TYPICAL >80% AT 115VAC , FULL LOAD * POWER GOOD SIGNAL：ON DELAY 100mS TO 500mS，OFF DELAY 1mS * OVER POWER PROTECTION：110～160% MAX * OVER VOLTAGE PROTECTION：+5V→5.6V～6.5V, +3.3V→3.6V～4.3V, +12V→13.2V～15V * OVER CURRENT PROTECTION: +3.3V→27.5~37.5A, +5V→27.5~37.5A, +12V→44~60A * SHORT CIRCUIT PROTECTION：+5V +12V +3.3V -12V AUTO-RECOVERED: +5VSB * EMI NOISE FILTER : FCC CLASS A, CISPR22 CLASS A * SAFETY : TO MEET UL, CUL, TUV, CCC * COOLING: ONE 40mm DC FANS * MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1H,P2H-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1H,P2H-V%20TUV.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1H-5507V(RoHS).pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1H,P2H-V%20CCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P1HVMA01.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P1H-5507V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/P1H-5507V%20FCC.pdf |
