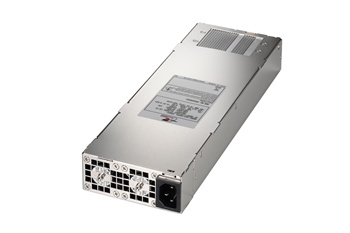

H1W-5AD0V(1400W)

製品種別 電源 (Zippy)
電源の種類 1U Single
製品説明

製品仕様

wattage 1400W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 295x100x40
dimension_inch 11.61x3.94x1.57
input_spec VOLTAGE: 115 - 240 VAC FULL RANGE FREQUENCY: 47 - 63 Hz INPUT CURRENT: 15/10 AMPS MAXIMUM AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 15/30 AMPS @ 110/220VAC POWER FACTOR CORRECTION: PFC CAN REACH THE TARGET OF 95% @ 115V, FULL LOAD, FOLLOWING THE STANDARD OF IEC 61000-3-2
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V136±5%±1%50mV+12V2116±5%±1% 120mV -12V00.5±5%±1%120mV+3.3V131±5%±1%50mV+5VSB0.14±5%±1%50mV
* POWER MODULE TOTAL OUTPUT POWER OF +5V AND +3.3V NOT EXCEED 210W
* POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1400W FOR 180~264V
* POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 1200W FOR 103~132V

features * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃~80℃
* EFFICIENCY: 82/84% TYPICAL AT 115V/230V FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* HOLD UP TIME: 17mS MINIMUM AT FULL LOAD & NOMINAL INPUT VOLTAGE
* OUTPUT PROTECTION: OPP / OVP / OCP / SCP
* FAN SPEED CONTROL
* SAFETY: TO MEET UL, CUL, TUV, CCC


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/H1W0MA00.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/H1W-5AD0V%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/H1W-5AD0V%20FCC%20.pdf
