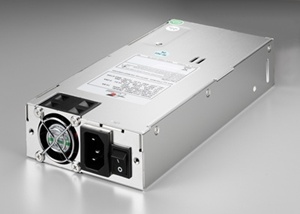

P1H-5420G(420W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 1U Single |
| 製品説明 |
製品仕様
| wattage | 420W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 225x100x40.5 |
| dimension_inch | 8.86x3.94x1.59 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY: 47~63 HZ INPUT CURRENT:5.5 A ( RMS ) FOR 115VAC / 2.5 A ( RMS ) FOR 230VAC INRUSH CURRENT: 50A MAX. FOR 115 VAC / 100A MAX. FOR 230 VAC |
| dc_output |
* TOTAL POWER : 420W |
| features | * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE * EFFICIENCY: TYPICAL >87% AT 115V, FULL LOAD * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION * OVER VOLTAGE PROTECTION * OVER CURRENT PROTECTION * SHORT CIRCUIT PROTECTION * EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B * SAFETY: TO MEET UL, CUL, TUV, CCC * 3.3V / 5V REMOTE SENSING * COOLING: ONE 40mm DC FANS * ACTIVE POWER FACTOR CORRECTION MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1H-G%20CB.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1H-5420G(RoHS).pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1H-G%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1H-G%20CCC.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/P1H-5420G%20(Radiation).pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/P1H-5420G%20FCC.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/P1HGMA00.pdf |
