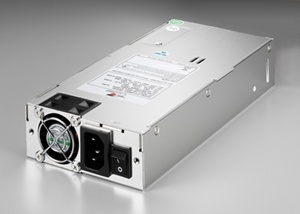

P1H-5501V(500W)

製品種別 電源 (Zippy)
電源の種類 1U Single
製品説明

製品仕様

wattage 500W
solution Server ,Workstation ,Storage System
dimension_mm 225x100x40.5
dimension_inch 8.86x3.94x1.59
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY: 47~63 HZ INPUT CURRENT:10A(RMS) FOR 115VAC / 5A(RMS) FOR 230VAC INRUSH CURRENT: 20A MAX. FOR 115 VAC / 40 A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.525±5%±1%50mV+12V240±5%±1% 120mV -12V00.8±5%±1%120mV+3.3V0.525±5%±1%50mV+5VSB0.14±5%±1%50mV
* THE OUTPUT CURRENT OF +5V AND +3.3V NOT EXCEED 35A
* TOTAL POWER: 500W

features * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃
* HOLD UP TIME: 16 mS MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: >80% TYPICAL AT 115V, FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION
* OVER CURRENT PROTECTION
* SHORT CIRCUIT PROTECTION
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* SAFETY: TO MEET UL, CUL, TUV, CCC * 3.3V / 5V REMOTE SENSING
* ACTIVE POWER FACTOR CORRECTION MEET IEC-1000-3-2 CLASS D

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1H,%20P2H-V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1H,P2H-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1H,P2H-V%20CCC.pdf
