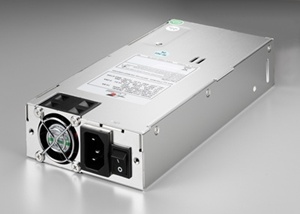

P1H-5420E(420W)

製品種別 電源 (Zippy)
電源の種類 1U Single
製品説明

製品仕様

wattage 420W
solution Server ,Workstation ,Storage System
dimension_mm 225x100x40.5
dimension_inch 8.86x3.94x1.59
input_spec VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY: 47~63 HZ INPUT CURRENT:6A ( RMS ) FOR 115VAC / 3A ( RMS ) FOR 230VAC INRUSH CURRENT: 50A MAX. FOR 115 VAC / 100A MAX. FOR 230 VAC
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.512±5%±1%60mV+12V232±5%±1% 120mV -12V00.5±5%±1%120mV+3.3V0.512±5%±1%60mV+5VSB0.13±5%±1%60mV
* THE OUTPUT CURRENT OF +5V AND +3.3V NOT EXCEED 90W
* TOTAL POWER : 420W

features * TEMPERATURE RANGE: OPERATING 0℃ ~ 50℃, STORAGE –20℃ ~ 80℃
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: TYPICAL >87% AT 115V, FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION: +5V→5.6V～6.5V, 3.3V→3.6V～4.3V, +12V→13.2V～15V
* OVER CURRENT PROTECTION
* EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B
* SAFETY: TO MEET UL, CUL, TUV, CCC * ACTIVE POWER FACTOR CORRECTION MEET IEC-1000-3-2 CLASS D
* ErP READY

*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/P1H-5420E(RoHS).pdf
