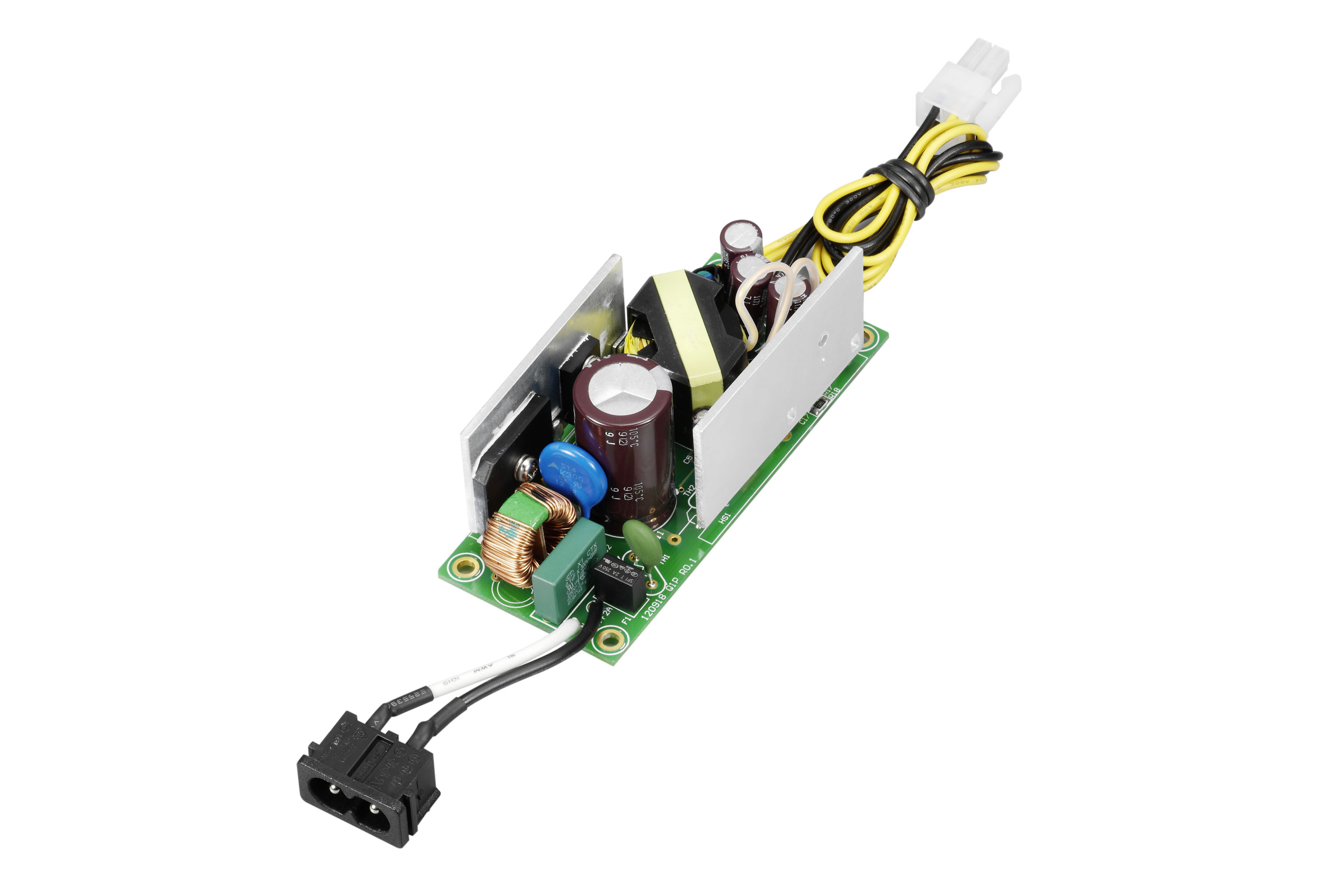

Q1P-1052V19(50W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 1U Single |
| 製品説明 |
製品仕様
| wattage | 50W |
|---|---|
| solution | Server ,Workstation |
| dimension_mm | 94.4x39.5x32 |
| dimension_inch | 3.72x1.56x1.26 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A (RMS) FOR 115 VAC / 1A (RMS) FOR 230 VAC INRUSH CURRENT：70 AMPS @ 230 VAC (AT 25 DEGREES AMBIENT COLD START FOR EACH POWER UNIT) |
| dc_output |
|
| features | ‧TEMPERATURE RANGE：OPERATING 0℃～60℃, STORAGE -20℃~80℃ ‧EFFICIENCY：TYPICAL 83% AT 115/230V AND FULL LOADING ‧LEAKAGE CURRENT: INPUT LEAKAGE CURRENT FROM LINE TO GROUND WILL BE LESS THAN 3.5mA RMS. MEASUREMENT WILL BE MADE AT 240 VAC AND 60Hz. ‧OVER POWER PROTECTION ‧OVER VOLTAGE PROTECTION: +19V→ +21~+22V ‧SHORT CIRCUIT PROTECTION ‧SAFETY : TO MEET UL, CUL, TUV, CCC *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/Q1P-1052V19(RoHS).pdf |
