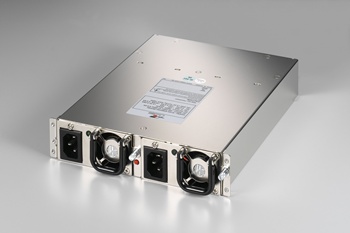

R1S2-5380V4H(380W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 1U Redundant |
| 製品説明 |
製品仕様
| wattage | 380W |
|---|---|
| solution | Server ,Workstation ,Storage System |
| dimension_mm | 230x176x41.8 |
| dimension_inch | 9.06x6.93x1.65 |
| input_spec | VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：5.5A (RMS) FOR 115 VAC 2.5A (RMS) FOR 230 VAC INRUSH CURRENT：15A MAX. FOR 115 VAC PER MODULE 30A MAX. FOR 230 VAC PER MODULE |
| dc_output |
|
| features | * TEMPERATURE RANGE：OPERATING 0℃～40℃, STORAGE -20℃~80℃ * HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 5V MUST BE MAINTAIN 16MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE * EFFICIENCY：84% TYPICAL，AT FULL LOAD 115VAC * LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC * POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1Ms * OVER POWER PROTECTION：110～160% MAX * OVER VOLTAGE PROTECTION: +5V→5.6~6.7V, +3.3V→3.6~4.3V, +12V→13~16V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * SAFETY: MEET UL60950, TUV EN-60950, CB IEC 60950 * WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/P1S-2400V%20&%20R1S2-V%20TUV.pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/R1S2MA00.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/P1S-2400V%20&%20R1S2-V%20CCC.pdf MTBF(ROHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1S2-5380V4H(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/P1S-2400V%20&%20R1S2-V%20CB.pdf CE(Radiation):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R1S2-5380V4H%20(+Radiation).pdf |
