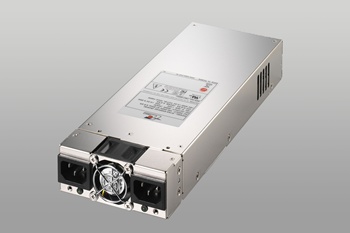

RP1U-5240V(240W)
| 製品種別 | 電源 (Zippy) |
|---|---|
| 電源の種類 | 1U Redundant |
| 製品説明 |
製品仕様
| wattage | 240W |
|---|---|
| solution | Server ,Workstation ,Storage System ,IPC |
| dimension_mm | 270x100x40.5 |
| dimension_inch | 10.63x3.94x1.57 |
| input_spec | VOLTAGE: 90 ~ 264 VAC FULL RANGE FREQUENCY : 47 ~ 63 HZ INPUT CURRENT: 4.0A(RMS) FOR 110VAC; 2.0A(RMS) FOR 220VAC INRUSH CURRENT: 35A MAX. FOR 110 VAC; 70A MAX. FOR 220 VAC |
| dc_output |
2. +5V, +3.3V AND +12V, -12V TOTAL OUTPUT MAX.: 230W 3. TOTAL POWER: 240W |
| features | * TEMPERATURE RANGE: OPERATING 0℃ --- 50℃, STORAGE –20℃~80℃ * HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE & EFFICIENCY: 78%±2 TYPICAL AT 230V, FULL LOAD; EFFICIENCY CALCULATION: WHEN CALCULATING OUTPUT POWER, INTERNAL FAN CURRENT SHALL BE INCLUDED WITH 12V OUTPUT. * POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms * OVER POWER PROTECTION: 110~170% * OVER VOLTAGE PROTECTION: +3.3V→3.6~4.3V, +5V→5.6~6.5V, +12V→13.2~15V * SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB * EMI NOISE FILTER: FCC CLASS B, CISPR22 CLASS B * LEAKAGE CURRENT: 3.5MA MAX. AT NOMINAL VOLTAGE 264VAC * SAFETY: MEET UL 60950-1, CSA 22.2 NO 60950-1, TUV IEC 60950-1, CCC * MEET IEC-1000-3-2 CLASS D *THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS. |
| DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/RP1UMA00.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/RP1U-5240V(RoHS).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/RP1U-5240V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/RP1U-5240V%20TUV.pdf |
