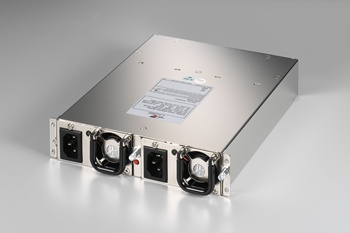

R1S2-5120V0H(120W)

製品種別 電源 (Zippy)
電源の種類 1U Redundant
製品説明

製品仕様

wattage 120W
solution Server ,Workstation ,Storage System
dimension_mm 150x176x41.8
dimension_inch 5.91x6.93x1.65
input_spec VOLTAGE： 90～264VAC FULL RANGE FREQUENCY： 47～63HZ INPUT CURRENT：2A (RMS) FOR 115 VAC 1A (RMS) FOR 230 VAC INRUSH CURRENT：35A MAX. FOR 115 VAC PER MODULE 70A MAX. FOR 230 VAC PER MODULE
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V010±5%±1%50mV+12V210±5%±1% 120mV -12V00.3±5%±1%120mV+3.3V010±5%±1%50mV+5VSB0.13±5%±1%50mV
* POWER MODULE TOTAL OUTPUT POWER OF +3.3V AND +5V NOT EXCEED 80W
* POWER MODULE TOTAL OUTPUT POWER NOT EXCEED 120W

features * TEMPERATURE RANGE：OPERATING 0℃～50℃, STORAGE -20℃~80℃
* HOLD UP TIME：WHEN POWER SHUTDOWN DC OUTPUT 12V MUST BE MAINTAIN 17MSEC IN REGULATION LIMIT AT NORMAL INPUT VOLTAGE
* EFFICIENCY：TYPICAL 85% AT 230V, 50% OF FULL LOAD
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
* POWER GOOD SIGNAL：ON DELAY 100mS TO 550mS，OFF DELAY 1Ms
* OVER POWER PROTECTION：110～150% MAX
* OVER VOLTAGE PROTECTION: +5V→5.7~6.5V, +3.3V→3.7~4.1V, +12V→12.8~15V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V, +5VSB
* SAFETY: MEET UL&CUL, TUV
* WARNING METHOD: AUDIO ALARM(BUZZER SOUND, RESETABLE), FALUT LED, TTL


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/R1S2VMA00.pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R1S2-5120V0H.pdf FCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/FCC/R1S2-5120V0H%20FCC.pdf MTBF(RoHS):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1S2-5120V0H(RoHS).pdf MTBF(RoHS)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1S2-5120V0H(RoHS)(NO%20FAN).pdf MTBF(RoHS)(50℃):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1S2-5120V0H(RoHS)(50%e2%84%83).pdf MTBF(RoHS)(50℃)(NO FAN):http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/MTBF/R1S2-5120V0H(RoHS)(50%e2%84%83)(NO%20FAN).pdf CE:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CE/R1S2-5120V0H%20(Radiation).pdf CB:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CB/R1S-1120V%20&%20R1S2-5120V%20CB.pdf TUV:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/TUV/R1S-1120V%20&%20R1S2-V%20TUV.pdf CCC:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/CCC/R1S2-5120VOV%20&%20V0H%20CCC.pdf
