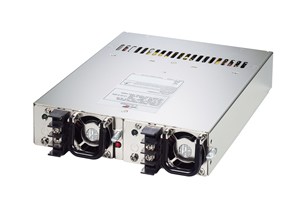

DR1S2-5380V4H(380W)

製品種別 電源 (Zippy)
電源の種類 1U Redundant DC
製品説明

製品仕様

wattage 380W
solution Server ,Workstation ,Storage System ,IPC ,Communication ,Networking
dimension_mm 230x176x41.8
dimension_inch 9.06x6.93x1.65
input_spec VOLTAGE:-36 ~ -72VDC FREQUENCY: DC STEADY-STATE CURRENT: 15/7A MAXIMUN AT ANY LOW/HIGH RANGE INPUT VOLTAGE INRUSH CURRENT: 70A MAX. @-48VDC INPUT (AT 25DEGREES AMBIENT COLD START) START UP CURRENT: 13AMPS MAX. @ -48VDC INPUT
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.520±5%±1%50mV+12V230±5%±1% 120mV -12V0.10.5±10%±1%120mV+3.3V0.520±5%±1%50mV+5VSB0.12.5±5%±1%50mV
* POWER MODULE TOTAL OUTPUT POWER OF +5V AND +3.3V NOT EXCEED 140W
* TOTAL OUTPUT MAX 380W
* WHEN CONDITIONS OF BOTH +5V/0A & +3.3V/0A, MIN LOAD OF 4A AT +12V IS A MUST


features * TEMPERATURE RANGE:OPERATING 0℃~50℃, STOREAGE -20℃~80℃
* HOLD UP TIME:1.6mS MIN.
* DIELECTRIC WITHSTAND:INPUT/OUTPUT 1500 VAC FOR 1 MINUTE INPUT TO FRAME GROUND 1500 VAC FOR 1 MINUTE
* EFFICIENCY: POWER SUPPLY EFFICIENCY TYPICAL >80% AT -48VDC
* OVER POWER PROTECTION: 110~160%
* OVER VOLTAGE PROTECTION:+3.3V→3.6V~5V,+5V→5.6V~6.7V,+12V→13V~17V
* SHORT CIRCUIT PROTECTION: +5V, +3.3V, +12V, -12V
* REMOTE ON / OFF CONTROL
* REMOTE SENSING DESIGN
* BALANCE LOAD SHARING DESIGN
* HOT-SWAPPABLE/HOT PLUGGABLE REDUNDANCY FUNCTION
* ISOLATION: BUILT-IN THE POWER MODULE
* FAULTY ALARM METHODS: LED, BUZZER, TTL SIGNAL
* EMI NOISE FILTER: FCC CLASS A , CISPR 22 CLASS A
* SAFETY:MEET UL, CUL, TUV, CCC


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
