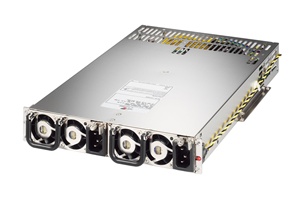

G1W2-5760V3H(760W)

製品種別 電源 (Zippy)
電源の種類 1U Redundant
製品説明

製品仕様

wattage 760W
solution Server ,Workstation ,Storage System ,IPC
dimension_mm 330x206x41.5
dimension_inch 12.99x8.11x1.63
input_spec VOLTAGE: 90V ~ 264VAC FREQUENCY: 47Hz ~ 63Hz INPUT CURRENT: 11/5.5A MAX AT ANY LOW/HIGH INPUT VOLTAGE INRUSH CURRENT: 60/80A @ 115/230VAC (25℃) POWER FACTOR CORRECTION: 95% @ 110V, FULL LOAD
dc_output Output VoltageOutput Current Min.Output Current Max.Regulation LoadRegulation LineOutput Ripple & Noise Max.[P-P]+5V0.532±5%± 1%50mV+12V262± 5%± 1% 120mV -12V00.8± 10%± 1%120mV+3.3V0.532± 5%± 1%50mV+5VSB0.13.5± 5%± 1%50mV
+5V AND +3.3V TOTAL OUTPUT MAX: 190W
TOTAL OUTPUT MAX: 760W

features * TEMPERATURE RANGE: OPERATING: 0℃ ~ 40℃, STORAGE: -20℃ ~ 80℃
* HOLD UP TIME: 16 ms MINIMUM AT FULL LOAD & NORMAL INPUT VOLTAGE
* EFFICIENCY: >80% TYPICAL AT 230 VAC FULL LOAD
* POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms, OFF DELAY 1 ms
* REMOTE ON/OFF CONTROL
* OVER POWER PROTECTION:110%~150%
* OVER VOLTAGE PROTECTION: +5V→5.7~6.2V, +3.3V→3.7~4.1V, +12V→13.3~14.3V;
* SHORT CIRCUIT: +5V, +3.3V, +12V, -12V, +5VSB
* OVER CURRENT PROTECTION: +5V→35~48A, +12V→68~99A, +3.3V→35~48A
* SAFETY: TO MEET UL, CUL, TUV, CB
* LEAKAGE CURRENT: 3.5 MA. MAX. AT NOMINAL VOLTAGE 250VAC
* EMI NOISE FILTER: FCC CLASS A, CISPR22 CLASS A
* WARMING METHOD: BUZZER SOUND, TTL, FAULT LED


*THE POWER-SUPPLY IS FOR CHASSIS-ASSEMBLY ONLY AND IS NOT ALLOWED TO BE OPERATED AS STAND-ALONE COMPONENT. FINAL ASSEMBLY HAS TO COMPLY WITH CORRESPONDING EMC- AND SAFETY-REGULATIONS.
pdf DRAWING:http://www.zippy.com.tw//backend/DownLoad/DownLoad/Power/DRAWING/G1W2MA02.pdf
