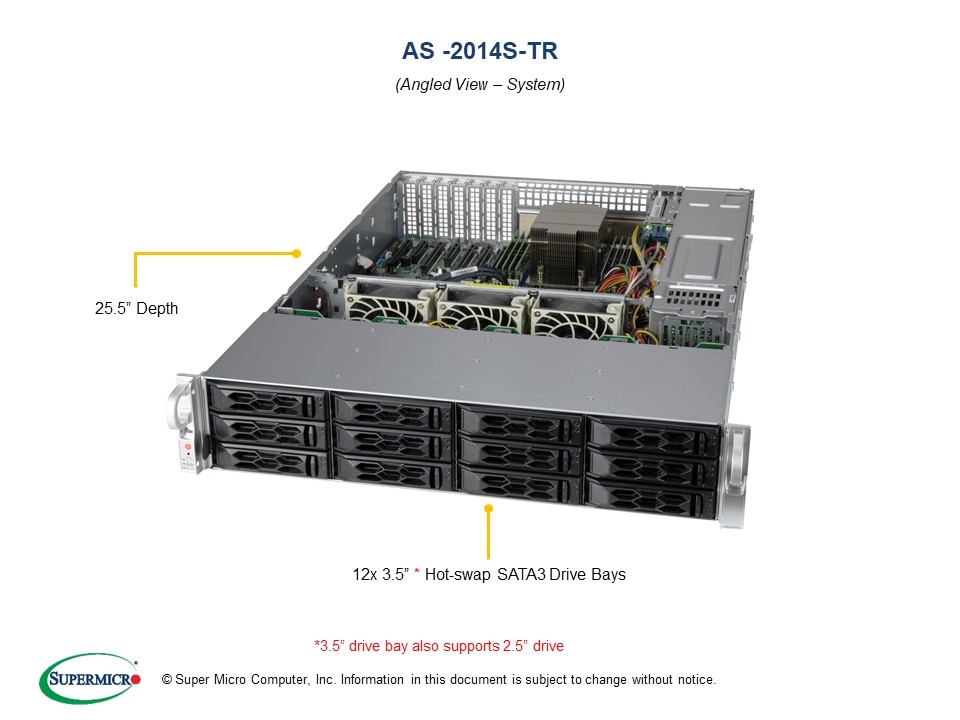

AS-2014S-TR
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 1 |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
AMD第3世代EPYC 7003シリーズについて
Supermicroについて
製品仕様
| Product SKUs | AS -2014S-TR | A+ Server 2014S-TR (Black) |
|---|---|
| マザーボード | Super H12SSL-i |
| Processor/Chipset | CPU | Single AMD EPYC™ 7002/7003 Series Processor Socket SP3 Supports CPU TDP up to 280W |
| Cores | Up to 64 Cores |
| メモリ | Memory Capacity | 8 DIMM slots Up to 2TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
| オンボードデバイス | Chipset | System on Chip |
| SATA | SATA3 (6Gbps) |
| Network Controllers | Broadcom BCM5720 Gigabit Ethernet Controller |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | ASPEED AST2500 BMC |
| 標準インターフェース | SATA | 8 SATA3 (6 Gbps) ports |
| LAN | 2x 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 6 USB 3.0 ports (4 rear, 2 via header) |
| COM | 1 COM Port (rear) |
| Video | 1 VGA port |
| BIOS | BIOS Type | AMI 256Mb SPI Flash EEPROM |
| マネージメント | Software | Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN |
| Power Configurations | ACPI / APM Power Management |
| システム監視機能 | CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| FAN | 3 Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| シャーシ | Form Factor | 2U Rackmount |
| Model | CSE-LA26TS-R920LPP1 |
| 外形寸法・重量 | Width | 17.2" (437mm) |
| Height | 3.5" (89mm) |
| Depth | 25.5" (648mm) |
| Package | 11.4" (H) x 26.7" (W) x 34.5" (D) |
| Weight | Net Weight: 33.5 lbs (15.2 kg) Gross Weight: 60 lbs (27.2 kg) |
| Available Colors | Black |
| フロントパネル | Buttons | Power On/Off button UID button |
| LEDs | Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED |
| 拡張スロット | PCI-Express | 5 PCI-E 4.0 x16 LP slots 2 PCI-E 4.0 x8 LP slots |
| ドライブベイ | Hot-swap | 12 Hot-swap 3.5" SATA3 drive bays 2 rear Hot-swap 2.5" SATA3 drive bays via optional kit |
| バックプレーン | 2U SAS/SATA/NVMe HDD Backplane |
| 冷却機構 | Fans | 3x 80x80x38mm middle cooling fans |
| 電源 | Total Output Power and Input | 920W with Input 100 - 127Vac 920W with Input 200 - 240Vac 920W with Input 200 - 240Vdc |
| Dimension(W x H x L) | 76 x 40 x 336 mm |
| AC Input Frequency | 50-60Hz |
| +12V | Max: 75A / Min: 0A (100Vac-127Vac) Max: 75A / Min: 0A (200Vac-240Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | Backplanes (connector) |
| Certification | |
| 動作環境 | RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
パーツ仕様
| パーツリスト | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard / Chassis | MBD-H12SSL-i CSE-LA26TS-R920LPP1 | 1 1 | Super H12SSL-i Motherboard 2U Chassis |
| Backplane | BPN-SAS3-LA26A-N12 | 1 |
2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS |
| Cable 1 | CBL-PWCD-0160-IS | 2 |
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| Cable 2 | CBL-SAST-1234-100 | 1 |
Slimline x4 (STR) to 4x SATA,35CM,SB 50CM,Xover,100 OHM, |
| Parts | MCP-260-00042-0N | 1 |
STD I/O shield for X9 socket R server MB with Gasket. |
| Rail Set | MCP-290-00053-0N | 1 |
Rail set, quick/quick, default for 2,3U 17.2";W |
| Heatsink / Retention | SNK-P0063P | 1 |
2U Passive CPU Heat Sink for AMD Socket SP3 Processors |
| *Power Supply | PWS-920P-1R2 | 2 |
1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF, |
| *Power Distributor | PDB-PT826-L8824 | 1 |
2U cost effective PDB support up to 1200W.,RoHS |
| *Cable 3 | CBL-0071L | 1 |
ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF |
| *FAN 1 | FAN-0181L4 | 3 |
80x80x38 mm, 9.4K RPM, Hot-swappable Middle Cooling Fan |
| *Drive Tray(s) | MCP-220-00184-0B | 1 2 |
Black gen-9 tool-less cost-effective 3.5 |
| Software | SFT-OOB-LIC | 1 |
OOB Management Package (per node license) |
| オプションパーツリスト | |||
| 型番 | 数量 | 内容 | |
| Rear 2.5" Drive Bay Kit | MCP-220-82616-0N | - | 12G 2.5x2 Drive Kit w/ Status LED(216B/826B/417B/846X/847B) |
| TPM | AOM-TPM-9655V | - | Vertical TPM with Infineon 9655 TCG 1.2 |
| AOM-TPM-9655V-S | - | Based on AOM-TPM-9655V with Server TXT package | |
| AOM-TPM-9665V | - | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | |
| AOM-TPM-9665V-S | - | Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH | |
| Global Services & Support | OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
| Software | SFT-DCMS-Single | 1 |
DataCenter Management Package (per node license) |
