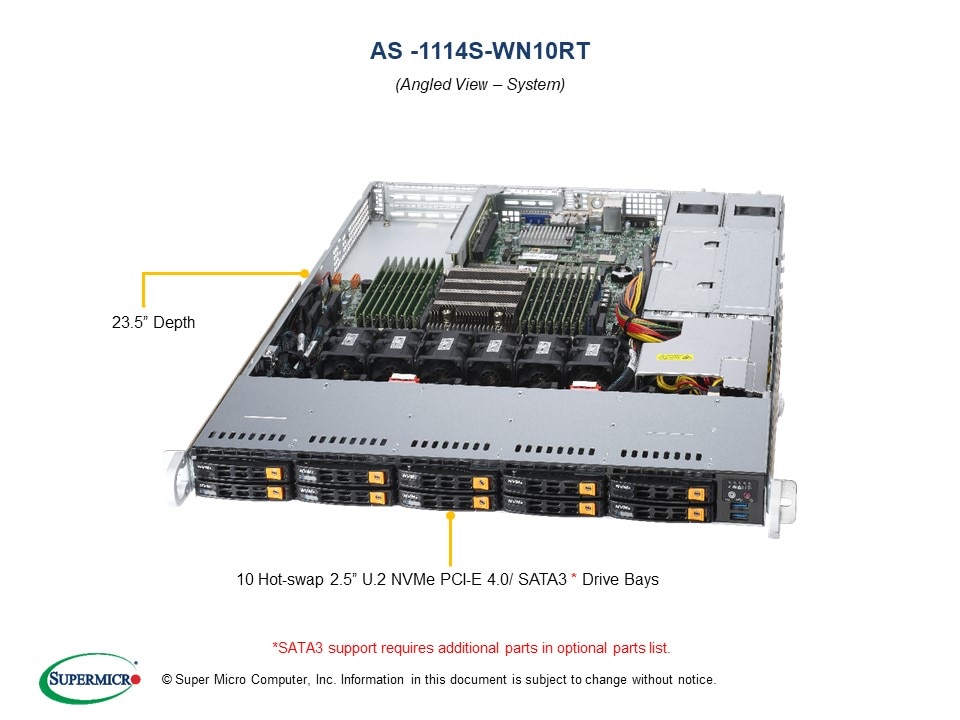

AS-1114S-WN10RT
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 1 |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
AMD第3世代EPYC 7003シリーズについて
Supermicroについて
製品仕様
| Product SKUs | AS -1114S-WN10RT | A+ Server 1114S-WN10RT (Black) |
|---|---|
| マザーボード | Super H12SSW-NTR |
| Processor/Cache | CPU | Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) Socket SP3 Support CPU TDP up to 280W |
| Cores | Up to 64 Cores |
| メモリ | Memory Capacity | 16 DIMM slots Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
| オンボードデバイス | Chipset | System on Chip |
| SATA | SATA3 (6Gbps) |
| Network Controllers | Dual 10GBase-T LAN with via Broadcom BCM57416 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | ASPEED AST2500 BMC |
| 標準インターフェース | SATA | 2 SATA3 (6 Gbps) ports |
| LAN | 2 RJ45 10GBase-T ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 7 USB 3.0 ports (4 rear, 2 front, 1 Type A) |
| Video | 1 VGA port |
| DOM | 2 SuperDOM (Disk on Module) ports |
| BIOS | BIOS Type | AMI 256Mb SPI Flash ROM |
| マネージメント | Software | Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN |
| Power Configurations | ACPI / APM Power Management |
| システム監視機能 | CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| FAN | Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| シャーシ | Form Factor | 1U Rackmount |
| Model | CSE-116TS-R706WBP5-N10 |
| 外形寸法・重量 | Width | 17.2" (437mm) |
| Height | 1.7" (43mm) |
| Depth | 23.5" (597mm) |
| Package | 7.63" (H) 23.42" (W) 31.45" (D) |
| Weight | Net Weight: 25 lbs (11.34 kg) Gross Weight: 39 lbs (17.69 kg) |
| Available Colors | Black |
| フロントパネル | Buttons | Power On/Off button UID button |
| LEDs | Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED |
| 拡張スロット | PCI-Express | 2 PCI-E 4.0 x16 (FHHL) slots 1 PCI-E 4.0* x16 (LP) slot 2 PCI-E 4.0 x2 NVMe M.2 slots * Limited Support: On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed. |
| ドライブベイ | Hot-swap | 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support |
| バックプレーン | Supports 10 NVMe or 10 SATA3 |
| 冷却機構 | Fans | 6 heavy duty fans with Optimal Fan Speed Control |
| AC/DC240V Input Redundant Power Supply | Total Output Power | 700W: 100 - 140Vac 750W: 200 - 240Vac 750W: 200 - 240Vdc (for CCC only) |
| Dimension(W x H x L) | 54.5 x 40.25 x 320 mm |
| Input | 100 - 140Vac / 8 - 6A / 50-60Hz 200 - 240Vac / 4.5 - 3.8A / 50-60Hz 200 - 240Vdc / 4.5 - 3.8A (CCC Only) |
| +12V | Max: 58A / Min: 0.5A (100 - 140Vac) Max: 62A / Min: 0.5A (200 - 240Vac) Max: 62A / Min: 0.5A (200 - 240Vdc)(CB/CCC Only) |
| +5V sb | Max: 3A / Min: 0A |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 |
| Certification | |
| 動作環境 | RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
パーツ仕様
| パーツリスト | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard / Chassis | MBD-H12SSW-NTR CSE-116TS-R706WBP5-N10 | 1 1 | Super H12SSW-NTR Motherboard 1U Chassis |
| Backplane | BPN-SAS3-LB16A-N10 | 1 |
1U 10-Slot SFF Backplane Supports 10x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors, HF, RoHS |
| Cable | CBL-SAST-1049 | 1 |
SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM,R |
| Cable | CBL-SAST-1221D-85 | 2 |
Slimline x8 (LE) to Slimline x8 (STR),20CM,85 OHM |
| Cable | CBL-SAST-1222-85 | 2 |
Slimline X8 (LE) to Slimline X8 (STR), 22CM,85 OHM |
| Cable | CBL-SAST-1222-100 | 1 |
Slimline x8 (LE) to 2x Slimline x4 (STR),22/22CM,100 OHM |
| Cable | CBL-SAST-1236-100 | 1 |
Slimline x8 (LE) to 2x Slimline x4 (STR),36/36CM,100 OH |
| Riser Card | RSC-W-66G4 | 1 |
1U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS |
| Riser Card | RSC-WR-6 | 1 |
1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS |
| Heatsink / Retention | SNK-P0062P | 1 |
1U Passive CPU Heat Sink for AMD Socket SP3 Processors |
| Power Supply | PWS-706P-1R | 2 |
1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF |
| Power Distributor | PDB-PT112-2424 | 1 |
SC112 24PIN REDUNDANT PWS DISTRIBUTOR |
| FAN | FAN-0141L4 | 6 |
40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan |
| Drive Tray(s) | MCP-220-00167-0B | 1 0 |
Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS |
| Rail Set | MCP-290-00063-0N | 1set | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
| オプションパーツリスト | |||
| 型番 | 数量 | 内容 | |
| Storage Controller card & cable | AOC-S3008L-L8e& 1x CBL-SAST-1295-100 AOC-S3008L-L8i& 1x CBL-SAST-1295-100 AOC-S3108L-H8iR& 1x CBL-SAST-1295-100 | - - - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBAMINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1EMINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60MINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG |
| Cable Management Arm | MCP-290-00085-0N | - | Supermicro Cable Management Arm for 1U Chassis |
| TPM | AOM-TPM-9655V | - | Vertical TPM with Infineon 9655 TCG 1.2 |
| AOM-TPM-9655V-S | - | Based on AOM-TPM-9655V with Server TXT package | |
| AOM-TPM-9665V | - | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | |
| AOM-TPM-9665V-S | - | Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH | |
| SATADOM | SSD-DM128-SMCMVN1 | - | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH |
| SSD-DM480-SMCMVN1 | - | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |
| SSD-DM064-SMCMVN1 | - | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | |
| SSD-DM032-SMCMVN1 | - | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | |
| MEM-IDSAVS4-032G | - | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |
| MEM-IDSAVM8A-128G | - | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |
| MEM-IDSAVM8A-256G | - | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |
| MEM-IDSAVE1-064G | - | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |
| MEM-IDSAVS3-032G | - | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |
| MEM-IDSAVT1-256G | - | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |
| Optional Kit for 10 SATA Drive Support | MCP-220-00147-0B | - | Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design) |
| Global Services & Support | OS4HR3/2/1OSNBD3/2/1 | - - | 3/2/1-year onsite 24x7x4 service 3/2/1-year onsite NBD service |
| Software | SFT-DCMS-Single | 1 |
DataCenter Management Package (per node license) |
