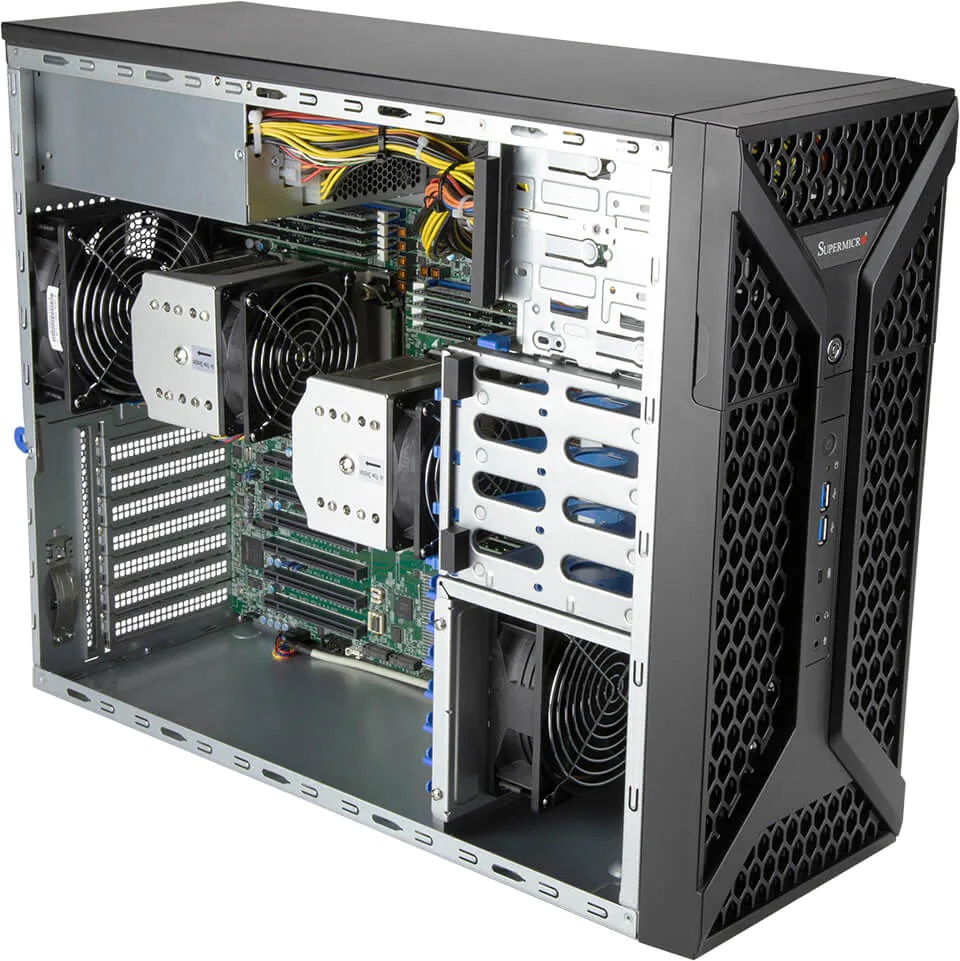

SYS-730A-I
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | 2 |
| CPU | |
| 筐体サイズ | ミドルタワー/ミニタワー |
| 最大GPU数 | 2 |
| 電源仕様 | シングル電源 |
| 用途/特長 | |
| 製品説明 | Rendering CAD Multimedia/Digital Content creation Engineering/scientific research |
第3世代 Intel Xeon Scalable プロセッサーについて
Supermicroについて
製品仕様
| Product SKUs | SYS-730A-I | SuperServer SYS-730A-I (black) |
|---|---|
| マザーボード | Super X12DAI-N6 |
| Processor/Cache | CPU | Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors Support CPU TDP 270W * |
| Cores | Up to 40C/80T; Up to 60MB Cache |
| Note | *Certain CPU SKUs will have support conditions, please contact Supermicro Technical Support for additional information |
| System Memory | Memory | Memory Capacity: 16 DIMM slots Memory Type: 3200/2933/2666MHz ECC DDR4 2-GbE |
| Memory Voltage | 1.2 V |
| Error Detection | ECC |
| On-Board Devices | SATA | SATA3 (6Gbps); RAID 0/1/5/10 support |
| Chipset | Intel® C621A |
| Network Connectivity | 2x 1GbE port(s) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Input / Output | SATA | 2 SuperDOM port(s) |
| LAN | 2 RJ45 1GbE (IPMI Shared on LAN port1) |
| USB | 6 USB 3.0 port(s) (2 Front_USB; 4 Rear_USB) 2 USB 3.1 port(s) (2 Rear_USB) |
| Video | 1 VGA port(s) |
| BIOS | BIOS Type | AMI 32MB SPI FLASH ROM |
| マネージメント | Software | Redfish API IPMI 2.0 SSM SPM KVM with dedicated LAN SUM NMI Watch Dog SuperDoctor® 5 |
| Power Configurations | ACPI/APM Power Management |
| システム監視機能 | CPU | Monitors for CPU Cores, Chipset Voltages, Memory. |
| FAN | Pulse Width Modulated (PWM) fan connectors Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| シャーシ | Form Factor | Mid-Tower |
| Model | CSE-735D4-1K26B |
| 外形寸法・重量 | Height | 16.7" (424mm) |
| Width | 7.6" (193mm) |
| Depth | 20.68" (525.3mm) |
| Package | 21.38" (H) x 11.97" (W) x 25.28" (D) |
| Weight | Net Weight: 27 lbs (12.25 kg) Gross Weight: 30 lbs (13.61 kg) |
| Available Color | black |
| フロントパネル | Buttons | Power On/Off button Reset button |
| LEDs | HDD activity LED Network activity LEDs Power status LED |
| Expansion Slots | PCI-Express (PCI-E) | Slot 1: PCI-E 4.0 x16 FHFL Slot 2: PCI-E 4.0 x16 FHFL Slot 3: PCI-E 4.0 x16 FHFL Slot 4: PCI-E 4.0 x16 FHFL Slot 5: PCI-E 4.0 x16 FHFL Slot 6: PCI-E 4.0 x8 FHHL |
| Drive Bays / Storage | Drive Bays | 4x 3.5" SATA (NVMe optional) drive bays Optional 4 U.2 NVMe drive support |
| M.2 | 2 M.2 NVMe |
| Peripheral Bays | 2x 5.25" drive bays (optional) |
| 冷却機構 | Fans | 2x 12cm heavy duty fans with optimal fan speed control |
| Power Supply | Dimension(W x H x L) | 150 x 86 x 185 mm |
| AC Input | 100-240Vac / 8A Max / 50-60Hz |
| Output Type | Modular Cable Output |
| Certification | |
| 動作環境 | Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
パーツ仕様
| パーツリスト | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard / Chassis | MBD-X12DAI-N6 CSE-735D4-1K26B | 1 1 | Super X12DAI-N6 Motherboard Mid-Tower Chassis |
| Cable 1 | CBL-0082L | 2 |
Y SPLIT SATA POWER ADAPTER, PB FREE |
| Cable 2 | CBL-SAST-0624 | 4 |
70cm SATA Cable S-S 30AWG |
| Parts | MCP-260-00115-0N | 1 |
Standard I/O Shield for X11DAi with EMI Gasket |
| Manual | MNL-1996-QRG | 1 |
7039A-I Quick Reference Guide |
| *Cable 3 | CBL-PWCD-0160-IS | 1 |
PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH |
| *Power Supply | PWS-1K26P-PQ | 1 |
1000W/1200W PS2 Multi output power supply with modular cable |
| *Cable 4 | CBL-0084L | 1 |
16PIN FRONT CTRL SPLIT CONVECTOR 6",PB FREE |
| *Cable 5 | CBL-CDAT-0560 | 1 |
Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF |
| *Cable 6 | CBL-CDAT-0680-55 | 1 |
[NR]FRNT CNTL,FLAT,IDC 2x10,PH1.27 TO 2x10,PH1.27,55CM,28AWG |
| *Cable 7 | CBL-CUSB-0860 | 1 |
USB 3.0,INT,20 PIN/F TO 20PIN/F,60CM,30/26AWG |
| *Cable 8 | CBL-CUSB-0999 | 1 |
USB3.2 Gen2X2 TypeC INT 20M to USB3.2 TypeC 24F,45CM,30AWG,R |
| *Cable 9 | CBL-CUSB-0999 | 1 |
USB3.2 Gen2X2 TypeC INT 20M to USB3.2 TypeC 24F,45CM,30AWG,R |
| *FAN 1 | FAN-0077L4-1 | 2 |
120x120x38 mm, 4K RPM, Optional Rear Exhaust Fan for SC732 |
| *Front Panel | FPB-FP735 | 1 |
Front control board for CSE735,RoHS |
