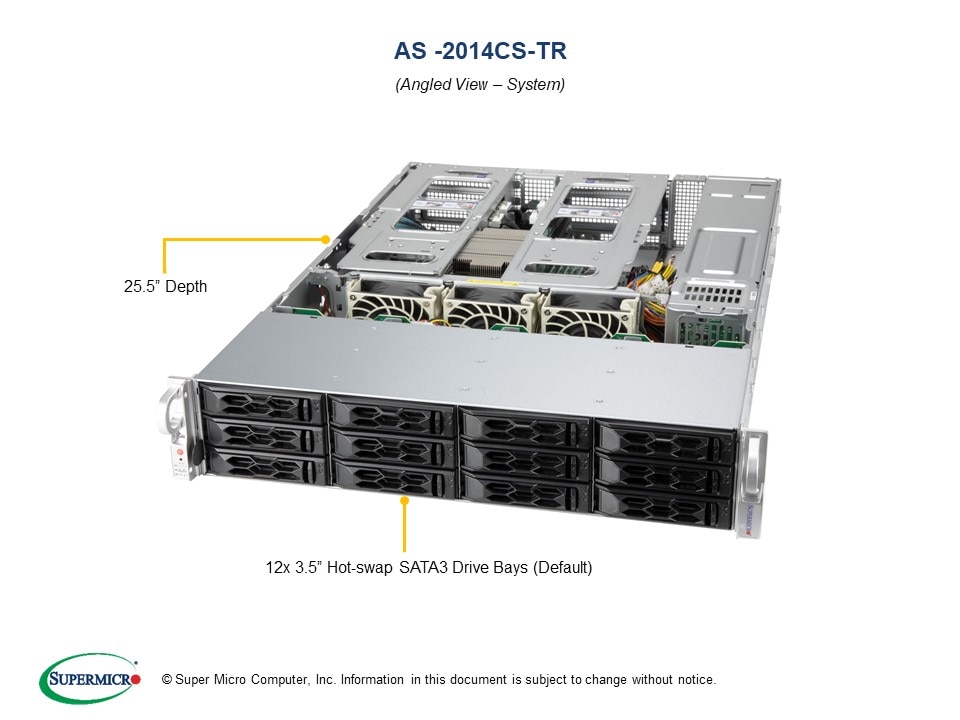

AS-2014CS-TR
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 2U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
AMD第3世代EPYC 7003シリーズについて
Supermicroについて
製品仕様
| Product SKUs | AS -2014CS-TR | A+ Server 2014CS-TR (Black) |
|---|---|
| マザーボード | Super H12SSW-AN6 |
| Processor/Chipset | CPU | Single AMD EPYC™ 7002/7003 Series Processor Socket SP3 Supports CPU TDP up to 280W |
| Cores | Up to 64 Cores |
| メモリ | Memory Capacity | 16 DIMM slots Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
| オンボードデバイス | Chipset | System on Chip |
| SATA | SATA3 (6Gbps) |
| Network Controllers | Flexible networking provided via AIOM |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| Video | ASPEED AST2600 BMC |
| 標準インターフェース | SATA | 16 SATA3 (6 Gbps) ports |
| LAN | Networking provided via AIOM 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (rear) |
| COM | 1 COM Port (rear) |
| Video | 1 VGA port |
| BIOS | BIOS Type | AMI 256Mb SPI Flash EEPROM |
| マネージメント | Software | Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN |
| Power Configurations | ACPI / APM Power Management |
| システム監視機能 | CPU | Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator |
| FAN | 3 Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment Thermal Control for fan connectors |
| シャーシ | Form Factor | 2U Rackmount |
| Model | CSE-LA26TS-R1K23AWP |
| 外形寸法・重量 | Width | 17.2" (437mm) |
| Height | 3.5" (89mm) |
| Depth | 25.5" (648mm) |
| Gross Weight | 59 lbs (26.76 kg) |
| Available Colors | Black |
| フロントパネル | Buttons | Power On/Off button UID button |
| LEDs | Power status LED HDD activity LED Network activity LEDs Universal Information (UID) LED |
| 拡張スロット | PCI-Express | 4 PCI-E 4.0 x16 (FH, 10.5"L) slots (or 2 PCI-E 4.0 x16 [FHHL] + 4 PCI-E 4.0 x8 [FHHL] slots) 2 PCI-E 4.0 x16 AIOM networking slots (One x8 AIOM slot and one x16 AIOM slot) |
| ドライブベイ | Hot-swap | 12 Hot-swap 3.5" drive bays: 12 SATA3 by defaultor 8 SATA3 + 4NVMe via optional cablesor 12 SAS3 via via optional SAS kit 12 SATA3 by default or 8 SATA3 + 4NVMe via optional cables or 12 SAS3 via via optional SAS kit Optional 2x 2.5" peripheral drive support via additional rear drive bays kits |
| バックプレーン | SAS/SATA/NVMe HDD Backplane |
| 冷却機構 | Fans | 3x 80x80x38mm middle cooling fans |
| 電源 | Total Output Power and Input | 920W with Input 100 - 127Vac 920W with Input 200 - 240Vac 920W with Input 200 - 240Vdc |
| Dimension(W x H x L) | 76 x 40 x 336 mm |
| AC Input Frequency | 50-60Hz |
| +12V | Max: 75A / Min: 0A (100Vac-127Vac) Max: 75A / Min: 0A (200Vac-240Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| Output Type | Backplanes (connector) |
| Certification | |
| 動作環境 | RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
パーツ仕様
| パーツリスト | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard / Chassis | MBD-H12SSW-AN6 CSE-LA26TS-R1K23AWP | 1 1 | Super H12SSW-AN6 Motherboard 2U Chassis |
| Backplane | BPN-SAS3-LA26A-N12 | 1 |
2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS |
| Cable 1 | CBL-SAST-1236-100 | 1 |
Slimline x8 (LE) to 2x Slimline x4 (STR),36/36CM,100 OH |
| Cable 2 | CBL-SAST-1285LP-100 | 1 |
SlimlineLP x4 (STR) to Slimline x4 (STR),57CM,100 OHM,Ro |
| Riser Card | RSC-D2-666G4 | 1 |
2U LHS DCO Riser card with three PCI-E 4.0x16slotsHFRoHS |
| Riser Card | RSC-D2R-666G4 | 1 |
2U RHS DCO Riser card with three PCI-E 4.0 x16slotsHFRoH |
| Heatsink / Retention | SNK-P0063P | 1 |
2U Passive CPU Heat Sink for AMD Socket SP3 Processors |
| *Power Supply | PWS-920P-1R2 | 2 |
1U, platinum efficiency,920W,AC input:100-127/200-240Vac,HF, |
| *Power Distributor | PDB-PT826-S4824 | 1 |
Based on PDB-PT826-8824 to add 2pcs 8pin for option support |
| *FAN | FAN-0206L4 | 3 |
80x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers |
| *Rail Set | MCP-290-00053-0N | 1 |
Rail set, quick/quick, default for 2,3U 17.2";W |
| Software | SFT-OOB-LIC | 1 |
OOB Management Package (per node license) |
| オプションパーツリスト | |||
| 型番 | 数量 | 内容 | |
| Storage Control Card and Cable(s) | AOC-S3008L-L8e 1x CBL-SAST-1260-100(support up to 8 SAS3 HDD) AOC-S3008L-L8i 1x CBL-SAST-1260-100(support up to 8 SAS3 HDD) AOC-S3108L-H8iR/16DD 1x CBL-SAST-1260-100(support up to 8 SAS3 HDD) AOC-S3616L-L16IT 1x CBL-SAST-1285-100 1x CBL-SAST-1260-100(support up to 12 SAS3 HDD) | - - - - | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBA MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60 MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM 16 int 12Gb/s ports, 16xGen3, IOC/IT mode - LP Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s MiniSAS HD x8 (LE) to 2x Slimline x4 (STR),60CM,100 OHM |
| CacheVault(s) | BTR-TFM8G-LSICVM02 | - | CacheVault for Broadcom 3108 |
| BKT-BBU-BRACKET-05 | Supercap mounting bracket for PCI-E location | ||
| BTR-TFM8G-LSICVM02 | - | CacheVault for Broadcom 3108 | |
| MCP-240-00127-0N | Supercap mounting bracket for 2.5" HDD location | ||
| MCP-220-00043-0N | STD Black hot-swap screw type 3.5"-to-2.5" converter drive tray | ||
| Optional Kit for NVMe Solution | CBL-SAST-1236LP-85(Support 2 NVMe drives slot per cables for HDD slot 0~1) | - | Slimline x8 (STR) to 2x SlimlineLP x4 (STR),FFC,40/40CM |
| CBL-SAST-1049(Support 2 NVMe drives slot per cables for HDD slot 2~3) | - | SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 30.2CM,85 OHM | |
| M.2 by AOC | AOC-SLG3-2M2 | 1 |
LP, PCIe3 x8, Dual port NVMe M.2 carrier |
| AOC-SLG3-2H8M2 | 1 | 2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS | |
| TPM | AOM-TPM-9655V | - | Vertical TPM with Infineon 9655 TCG 1.2 |
| AOM-TPM-9655V-S | - | Based on AOM-TPM-9655V with Server TXT package | |
| AOM-TPM-9665V | - | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | |
| AOM-TPM-9665V-S | - | Vertical TPM TCG 2.0 Provisioned for a server,RoHS/REACH | |
| Global Services & Support | OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service | |
| Software | SFT-DCMS-Single | 1 |
DataCenter Management Package (per node license) |
