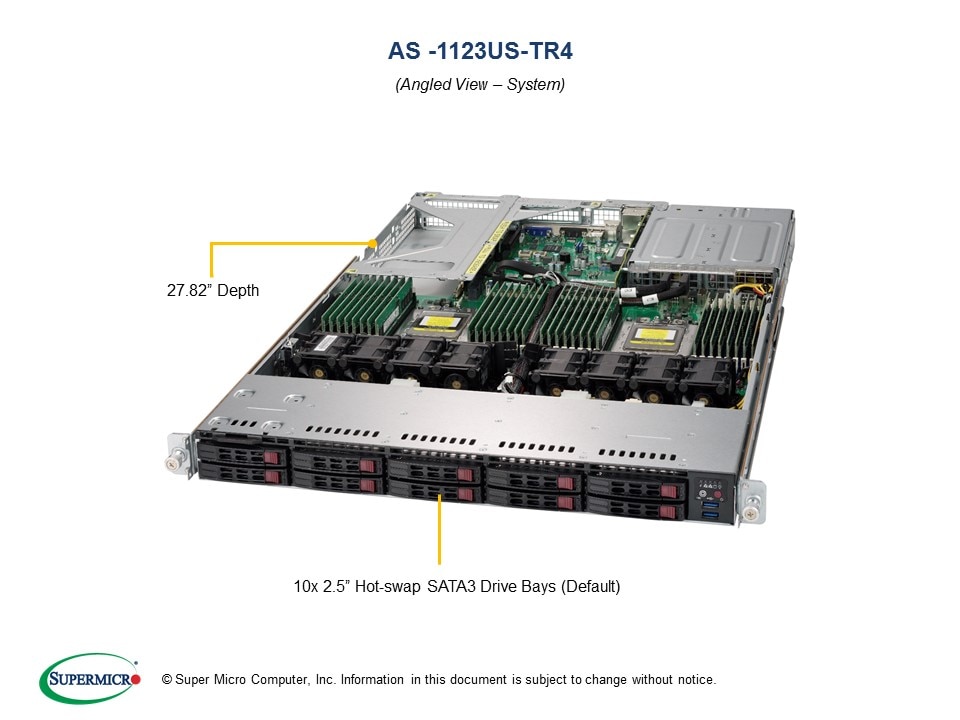

AS-1123US-TR4
製品種別 | サーバ |
---|---|
CPUソケット数 | |
CPU | |
筐体サイズ | 1U |
最大GPU数 | |
電源仕様 | リダンダント電源 |
用途/特長 | |
製品説明 |
製品仕様
Product SKUs | AS -1123US-TR4 | A+ Server 1123US-TR4 |
---|---|
Processor/Chipset | CPU | Dual AMD EPYC™ 7001/7002* series Processors (* Board revision 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W* |
Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) Up to 64 Cores (Board revision 2.x + 7002 Processors) |
Chipset | System on Chip (SoC) |
メモリ | Memory Capacity | 32 DIMM slots Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) 8-channel memory bus |
Memory Type | DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs (7001 Processors) DDR4 3200 MHz Registered ECC, 240-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) |
DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (* Board revision 2.x required + 7002 Processors) |
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
オンボードデバイス | VGA | ASPEED AST2500 BMC |
拡張スロット | 1U | 2 PCI-E x16 (FH/HL 9.5") slots 2 PCI-E x8 (LP) slot (1 LP, 1 internal LP)(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.) |
標準インターフェース | SATA | 10 SATA3 (6 Gbps) ports |
LAN | Quad Gigabit LAN ports 1 RJ45 Dedicated IPMI LAN port |
USB | 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) |
VGA | 1 VGA port |
SAS | 8 SAS3 ports support via optional Add-on Card |
NVMe | 2 NVMe support with optional cables |
Others | 1 COM port (rear) 2 SATA DOM power connector TPM 1.2 header |
BIOS | BIOS Type | AMI 128Mb SPI Flash EEPROM |
BIOS Features | Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1 |
シャーシ | Form Factor | 1U |
Model | CSE-119UTS-R1K02P-T |
外形寸法/重量 | Height | 1.7" (43mm) |
Width | 17.2" (437mm) |
Depth | 27.82" (707mm) |
Weight | Net Weight: 26 lbs (11.8 kg) Gross Weight: 41 lbs (18.6 g) |
フロントパネル | Buttons | Power On/Off button System Reset button |
LEDs | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
ドライブベイ | Hot-swap | 10 2.5" hot-swap SATA3or 8 SATA3 + 2 NVMe drive bays (optional) |
バックプレーン | HDD Backplane | Supports 10 SATA3 or 8 SATA3 + 2NVMe or 8 SAS3 + 2 SATA3 HDD |
冷却機構 | Fans | 8 heavy-duty PWM fans with optimal fan speed control |
Air Shroud | 2 Air Shroud |
電源 | Total Output Power | 800W/1000W |
Dimension(W x H x L) | 73.5 x 40 x 203 mm |
Input | 100-127Vac / 9.8 - 7A / 50-60Hz 200-240Vac / 7 - 5A / 50-60Hz 200-240Vdc / 7 - 5A (for CCC only) |
+12V | Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) Max: 83A / Min: 0A (200-240Vdc) |
12Vsb | Max: 2.1A / Min: 0A |
Output Type | 25 Pairs Gold Finger Connector |
Certification | Titanium Level [ Test Report ] |
システム監視機能 | CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator |
FAN | Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
Temperature | Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I2C Temperature Sensing Logic |
LED | CPU / System Overheat LED |
Other Features | Chassis Intrusion Detection Chassis Intrusion Header |
動作環境/コンプライアンス | RoHS | RoHS Compliant |
Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
