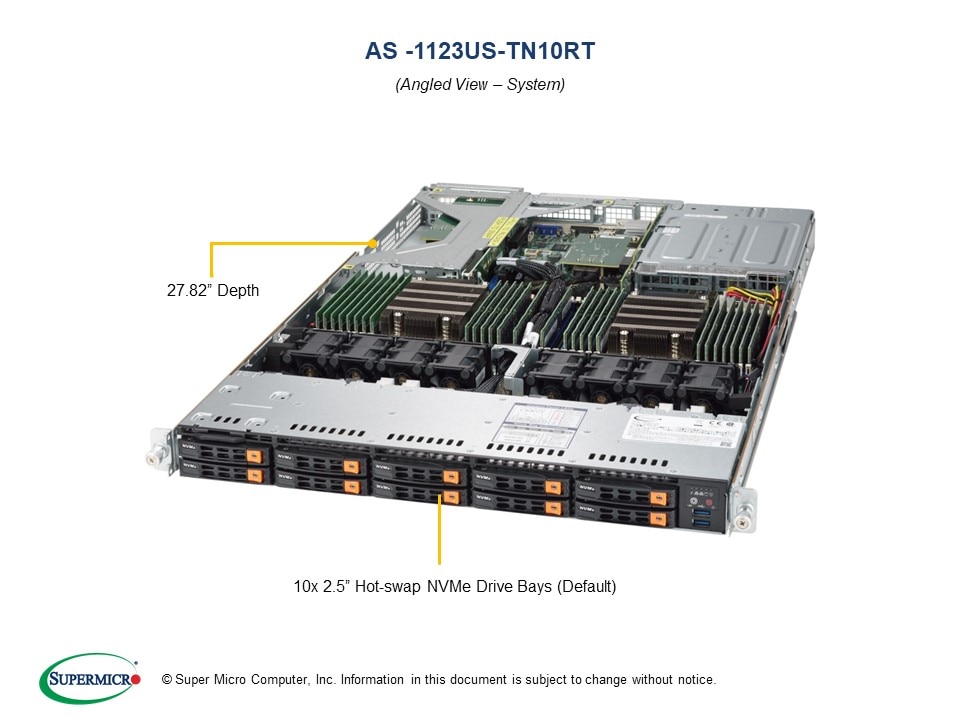

AS-1123US-TN10RT
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | AS -1123US-TN10RT | A+ Server 1123US-TN10RT |
|---|---|
| Processor/Chipset | CPU | Dual AMD EPYC™ 7001/7002* series Processors (* Board revision 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W* |
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) Up to 64 Cores (Board revision 2.x + 7002 Processors) |
| Chipset | System on Chip (SoC) |
| メモリ | Memory Capacity | 32 DIMM slots Supports up to 4TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) Supports up to 8TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) 8-channel memory bus |
| Memory Type | DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs (7001 Processors) DDR4 3200 MHz Registered ECC, 240-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (* Board revision 2.x required + 7002 Processors) |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| オンボードデバイス | IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC |
| Network Controllers | Intel® X540 Controller |
| VGA | ASPEED AST2500 BMC |
| 拡張スロット | 1U | 1 PCI-E 3.0 x16 (FH, 9.5"L) slot 1 PCI-E 3.0 x8 (LP) slot |
| M.2 | 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 via optional cable CBL-SAST-0639 (2240/2260/2280/22110) or 2 Internal M.2 slots via optional cable CBL-SAST-0639 (NVMe 2260 + SATA 2260) |
| 標準インターフェース | NVMe | 10 U.2 NVMe support |
| LAN | 2x 10GbBase-T LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 5 USB 3.0 ports (2 rear + 2 front + 1 Type A) |
| VGA | 2 VGA ports (1 rear, 1 onboard) |
| Others | 1 COM port 2 SATA DOM power connectors TPM 1.2 header |
| BIOS | BIOS Type | AMI 128Mb SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1 |
| シャーシ | Form Factor | 1U |
| Model | CSE-119UTS-R1K02P-N10T |
| 外形寸法/重量 | Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 27.82" (707mm) |
| Weight | Net Weight: 26 lbs (11.8 kg) Gross Weight: 41 lbs (18.6 kg) |
| フロントパネル | Buttons | Power On/Off button System Reset button |
| LEDs | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
| ドライブベイ | Hot-swap | 10 hot-swap 2.5" U.2 NVMe drive bays |
| 冷却機構 | Fans | 8 heavy-duty PWM fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| 電源 | Total Output Power | 800W/1000W |
| Dimension(W x H x L) | 73.5 x 40 x 203 mm |
| Input | 100-127Vac / 9.8 - 7A / 50-60Hz 200-240Vac / 7 - 5A / 50-60Hz 200-240Vdc / 7 - 5A (for CCC only) |
| +12V | Max: 66.7A / Min: 0A (100-127Vac) Max: 83A / Min: 0A (200-240Vac) Max: 83A / Min: 0A (200-240Vdc) |
| 12Vsb | Max: 2.1A / Min: 0A |
| Output Type | 25 Pairs Gold Finger Connector |
| Certification | Titanium Level [ Test Report ] |
| システム監視機能 | CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator |
| FAN | Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic |
| LED | CPU / System Overheat LED |
| Other Features | Chassis Intrusion Detection Chassis Intrusion Header |
| 動作環境/コンプライアンス | RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
