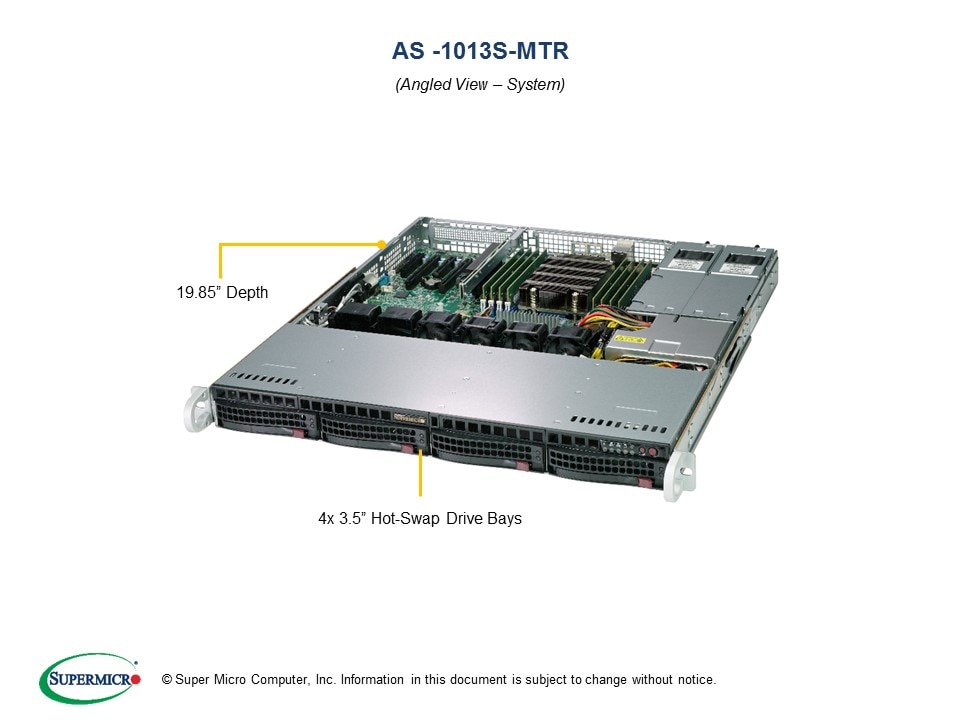

AS-1013S-MTR
| 製品種別 | サーバ |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | 1U |
| 最大GPU数 | |
| 電源仕様 | リダンダント電源 |
| 用途/特長 | |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | AS -1013S-MTR | A+ Server 1013S-MTR |
|---|---|
| Processor/Chipset | CPU | Single AMD EPYC™ 7001/7002* series Processor (*Board revision 2.x required) Socket SP3 Supports CPU TDP 225W / cTDP up to 240W* |
| Cores | Up to 32 Cores (Board revision 1.x + 7001 Processors) Up to 64 Cores (Board revision 2.x + 7002 Processors) |
| Chipset | System on Chip (SoC) |
| メモリ | Memory Capacity | 8 DIMM slots Supports up to 1TB Registered ECC DDR4 2666MHz SDRAM (7001 Processors) Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required + 7002 Processors) 8-channel memory bus |
| Memory Type | DDR4 2666 MHz Registered ECC, 240-pin gold-plated DIMMs DDR4 3200 MHz Registered ECC, 240-pin gold-plated DIMMs (Board revision 2.x required + 7002 Processors) |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB, 256GB* (* Board revision 2.x required + 7002 Processors) |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| オンボードデバイス | SATA | SATA3 (6 Gbps) |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2500 BMC |
| Network Controllers | Intel® I210 Controller |
| VGA | ASPEED AST2500 BMC |
| 拡張スロット | PCI Express | 1 PCI-E 3.0 x16 (FH/HL) slot |
| M.2 | Interface: PCI-E 3.0 x4 (NVMe based) Form Factor: 2280, 22110 Key: Onbard M-key Number of M.2: Single |
| 標準インターフェース | SATA | 4 SATA3 (6 Gbps) ports |
| LAN | 2x 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port |
| USB | 5 USB 3.0 ports (2 rear + 2 via header + 1 Type A) 4 USB 2.0 ports (2 rear, 2 via header) |
| VGA | 1 VGA port |
| Others | 1 COM port (rear) 2 SATA DOM power connector TPM 1.2 header |
| BIOS | BIOS Type | AMI 128Mb SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 5.1 USB Keyboard Support SMBIOS 3.1.1 |
| シャーシ | Form Factor | 1U |
| Model | CSE-813MFTQC-R407CB |
| 外形寸法/重量 | Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 19.85" (503mm) |
| Weight | Net Weight: 20 lbs (9.1 kg) Gross Weight: 33 lbs (15.0 kg) |
| フロントパネル | Buttons | Power On/Off button System Reset button |
| LEDs | Power LED Hard drive activity LED 2x Network activity LEDs System Overheat LED / Fan fail LED / UID LED |
| ドライブベイ | Hot-swap | 4 hot-swap 3.5" SATA3 drive bays |
| Peripheral Drives | Optional | Optional 2.5" drive adapter Optional slim DVD drive |
| バックプレーン | HDD Backplane | Supports 4 SATA3 3.5" HDD |
| 冷却機構 | Fans | 4x 40x28mm 4-pin PWM Cooling Fans |
| Air Shroud | 1 Air Shroud |
| AC/DC240V Input Redundant Power Supplies | Total Output Power | 400W |
| Dimension(W x H x L) | 54.5 x 40 x 220 mm |
| Input | 100 - 240Vac / 6.0 - 3.0A / 50-60Hz 200 - 240Vdc / 3.4 - 3.2A (CCC Only) |
| +12V | Max: 33A / Min: 0.5A |
| +5V sb | Max: 3A / Min: 0A |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 |
| Certification | Platinum Level Certified [ Test Report ] |
| システム監視機能 | CPU | Monitors CPU Core Voltages, +12V, +3.3V, +5V, +5V standby, 3.3V standby, VBAT CPU switching voltage regulator |
| FAN | Up to 8-fan status tachometer monitoring Up to eight 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic |
| LED | CPU / System Overheat LED |
| Other Features | Chassis Intrusion Detection Chassis Intrusion Header |
| 動作環境/コンプライアンス | RoHS | RoHS Compliant |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing) |
