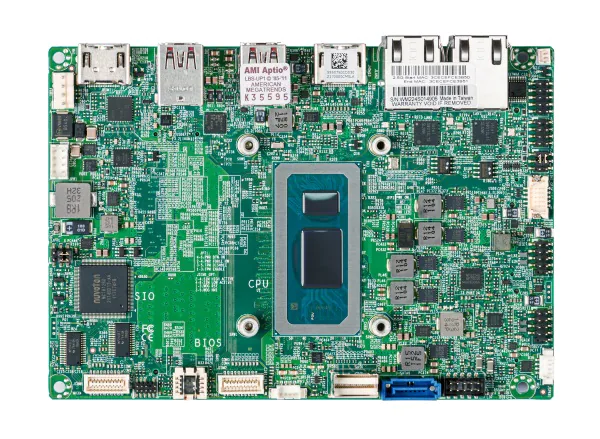

X13SAN-E
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | FCBGA1744 |
| マザーボードサイズ | 3.5”SBC |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | MBD-X13SAN-E | X13SAN-E |
|---|---|
| フォームファクター/外形寸法 | Form Factor | 3.5" SBC |
| Dimension | 5.7" x 4" (14.6cm x 10.16cm) |
| Processor | CPU | 12th Generation Intel® Core™ i5-1245UE Processor Single Socket FCBGA-1744 supported, CPU TDP supports Up to 15W TDP |
| Core | Up to 10 cores, 12 threads / 12MB Cache |
| メモリ | Memory Capacity | 2 DIMM slots Up to 64GB SODIMM, DDR5-4800MHz |
| Memory Type | 4800MHzDDR5 SODIMM |
| DIMM Sizes | 8GB, 16GB, 32GB |
| Memory Voltage | 1.1V |
| オンボードデバイス | Chipset | System on Chip |
| SATA | 1 SATA3 ports |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I225-IT, 2.5G, TSN, industrial grade |
| 標準インターフェース | SATA | 1 SATA3 port(s) |
| USB | 6 USB port(s) (2 rear type A; 4 via header) 2 USB 3.2 Gen2 port(s) (2 rear type C Support DP1.4a (ALT mode)) |
| Video Output | 1 HDMI 2.0b port(s), 1 HDMI port(s), 2 DP (Alt mode) port(s) |
| Serial Port | 4 COM Port(s) (4 header) |
| TPM | 1 TPM Chip |
| Others | 1 8-bit GPIO header 1 SMBus header 1 System Fan 1 ALC 888S HD Audio |
| 拡張スロット | PCI-E | 1 PCI-E 4.0 x4 SlimSAS |
| M.2 | M.2 Interface: 1 PCI-E 4.0 x4; 1 CNVi/PCI-E 3.0 x1/USB2; 1 SATA/USB3/USB2 Form Factor: 2242/2280, 2230, 2242/2280 Key: M-Key, E-Key, B-Key |
| BIOS | BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.4 SMBIOS 3.5 or later UEFI 2.8 PCI FW 3.0 |
| マネージメント | Software | AMT, vPro, Watchdog |
| System Management Software | SuperDoctor® 5 |
| Power Configurations | ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input |
| システム監視機能 | Voltage | VBAT, CPU temperature, +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V |
| LED | Power LED |
| Temperature | CPU thermal trip support |
| Other Features | RoHS |
| FAN | 4x 4-pin fan headers (up to 4 fans) |
| 動作環境 | Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) |
パーツ仕様
| パーツリスト (Bulk Package) | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard | MBD-X13SAN-E | 1 |
X13SAN-E Motherboard |
