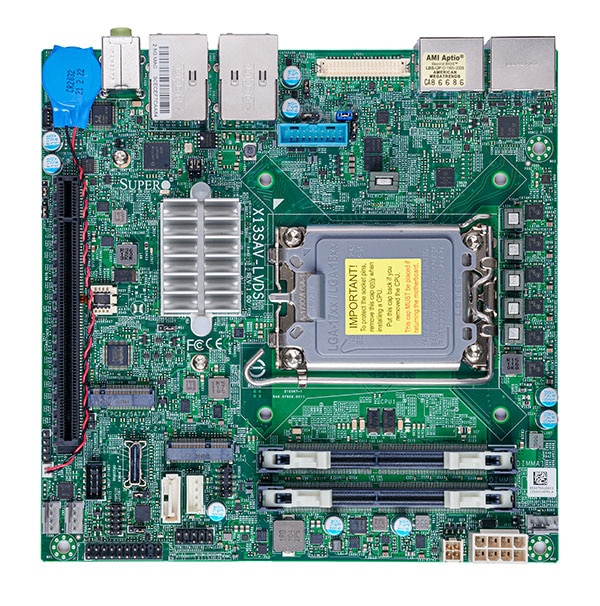

X13SAV-LVDS

製品種別	マザーボード
CPUソケット数
CPU	Core i9 - 12900 (12th, Alder Lake)　 Core i7 - 12700 (12th, Alder Lake)　 Core i5 - 12000 (12th, Alder Lake)　 Core i3 - 12000 (12th, Alder Lake)　 Pentium Gold G7400 (Alder Lake)　 Celeron G 6900 (Alder Lake)
CPUソケット	LGA1700 (Socket V)
マザーボードサイズ	Mini-ITX
製品説明

Supermicroについて

製品仕様

Product SKUs
MBD-X13SAV-LVDS	X13SAV-LVDS
フォームファクター/外形寸法
Form Factor	Mini-ITX
Dimension	6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU	12th Generation Intel Core i9/Core i7/Core i5/Core i3/Pentium/Celeron Processor Single Socket LGA-1700 supported
Core	Up to 16 cores
メモリ
Memory Capacity	2 DIMM slots Up to 64GB SODIMM, DDR4-3200MHz
Memory Type	3200/2933/2666MHzDDR4 SODIMM
DIMM Sizes	4GB, 8GB, 16GB, 32GB
Memory Voltage	1.2V
オンボードデバイス
Chipset	Intel Q670E
SATA	Intel Q670E controller for 1 SATA3 (6 Gbps) ports; RAID 0,1,5,10 Intel Q670E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Network Controllers	Single LAN with Intel® Ethernet i225LM Single LAN with Intel® Ethernet Controller I210-AT
標準インターフェース
SATA	5 SATA3 (6Gbps) port(s)
USB	2 USB 2 port(s) (2 via header) 4 USB 3.2 Gen2 port(s) (4 rear type A) 2 USB 3.1 Gen1 port(s) (2 via header)
Video Output	1 HDMI 2.0b port(s), 2 DP (DisplayPort) port(s), 1 HDMI port(s), 1 LVDS port(s)
Serial Port	1 COM Port(s) (1 header)
TPM	TPM Header & Chip both
拡張スロット
PCI-E	1 PCI-E 5.0 x16
M.2	M.2 Interface: 1 PCI-E 4.0 x4; 1 CNVi/PCI-E 3.0 x1 Form Factor: 2280, 2230 Key: M-Key, E-Key
BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.1 SMBIOS 3.0 or later PCI FW 3.0 UEFI 2.7 RTC (Real Time Clock) Wakeup
マネージメント
Software	SuperDoctor® 5, AMT, vPro
System Management Software	Wake-on-LAN, Watchdog
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power Input
システム監視機能
Voltage	VBAT, 4 fans with tachometer monitoring, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, +1.5V, +1.35V
LED	Power LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support
Other Features	RoHS, M.2 NGFF connector, Chassis intrusion detection, ATX Power connector, ACPI power management, 12V DC or ATX Power Source
FAN	3x 4-pin fan headers (up to 3 fans)
動作環境
Operating Temperature Range	0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range	-40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
