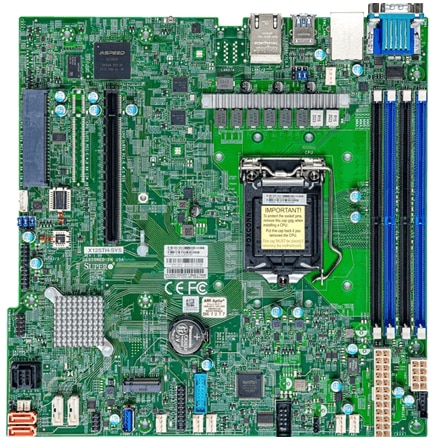

X12STH-SYS
製品種別 | マザーボード |
---|---|
CPUソケット数 | |
CPU | |
CPUソケット | LGA1200 (Socket H5) |
マザーボードサイズ | Micro-ATX |
製品説明 | For SuperServer Only |
製品仕様
Product SKUs | MBD-X12STH-SYS | X12STH-SYS |
---|---|
フォームファクター/外形寸法 | Form Factor | Micro-ATX |
Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) |
Processor | CPU | 10th Generation Intel® Pentium® Processor, Intel® Xeon® E-2300 Processor Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 95W TDP |
Core | Up to 8 cores, 16 threads |
メモリ | Memory Capacity | 4 DIMM slots Up to 128GB Unbuffered ECC UDIMM, DDR4-3200MHz |
Memory Type | 3200/2933/2666MHz SDRAM |
DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors |
オンボードデバイス | Chipset | Intel® C256 |
SATA | Intel® C256 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
IPMI | ASPEED AST2600 BMC |
Graphics | ASPEED AST2600 BMC |
Network Controllers | Dual LAN with Intel® Ethernet Controller I210 |
標準インターフェース | SATA | 8 SATA3 (6Gbps) port(s) |
LAN | 2 RJ45 Gigabit Ethernet LAN ports |
USB | 6 USB 2.0 port(s) (4 via header; 2 rear) 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
Video Output | 1 VGA port(s) |
Serial Port | 2 COM Port(s) (1 header; 1 rear) |
DOM | 2 SATA DOM (Disk on Module) power connector support |
TPM | 1 TPM Header |
拡張スロット | PCI-E | 1 PCI-E 3.0 x4 (in x8 slot), 1 PCI-E 4.0 x16 |
M.2 | M.2 Interface: 1 PCI-E 3.0 x4 Form Factor: 2280/22110 Key: M-Key |
BIOS | BIOS Type | 256MB UEFI |
BIOS Features | ACPI 6.0 SMBIOS 2.7 Plug and Play (PnP) RTC (Real Time Clock) Wakeup UEFI 2.7 USB Keyboard support PCI 3.0 |
マネージメント | Software | SuperDoctor® 5, NMI, SUM, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog |
System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
システム監視機能 | Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages |
LED | UID/Remote UID CPU / System Overheat LED |
Temperature | Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI |
FAN | 6x 4-pin fan headers (up to 6 fans) Thermal control tachometer fan connectors Fan speed control 6 fans with tachometer status monitoring Overheat LED indication |
Other Features | WOL UID Node Manager Support M.2 NGFF connector Dual Cooling Zones CPU thermal trip support for processor protection Control of power-on for recovery from AC power loss Chassis intrusion header Chassis intrusion detection ACPI power management |
動作環境 | Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range | 8% - 90% (non-condensing) |
Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
パーツ仕様
パーツリスト (Bulk Package) | |||
---|---|---|---|
型番 | 数量 | 内容 | |
Motherboard | MBD-X12STH-SYS | 1 |
X12STH-SYS Motherboard |
オプションパーツリスト | |||
型番 | 数量 | 内容 | |
TPM security module | AOM-TPM-9670V | -- | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
AOM-TPM-9671H | -- | SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor | |
AOM-TPM-9671V | -- | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor | |
AOM-TPM-9670H | -- | SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor |
