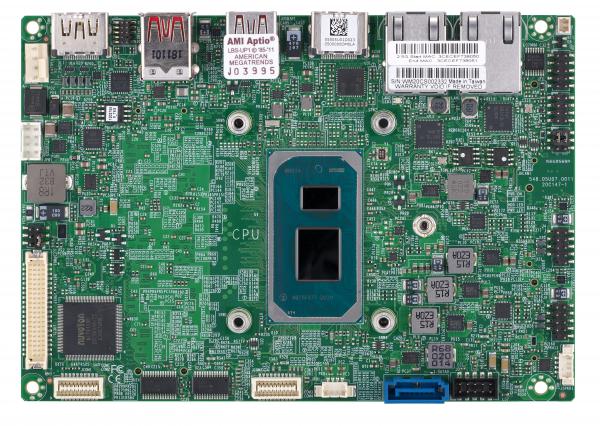

X12STN-C-WOHS
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | FCBGA1449 |
| マザーボードサイズ | 3.5”SBC |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | MBD-X12STN-C-WOHS | X12STN-C-WOHS |
|---|---|
| フォームファクター/外形寸法 | Form Factor | 3.5" SBC |
| Dimensions | 5.7" x 4.0" (14.6cm x 10.16cm) |
| プロセッサ/キャッシュ | CPU | Intel® Celeron® Processor 6305UE Single Socket FCBGA-1449 supported, CPU TDP supports 15W TDP |
| Cores / Cache | 2 cores, 2 threads / 4MB cache |
| メモリ | Memory Capacity | Up to 64GB Unbuffered non-ECC SO-DIMM, DDR4-3200MHz, in 2 DIMM slots |
| Memory Type | 3200MHz Non-ECC DDR4 Unbuffered 260pin SODIMM |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB |
| Memory Voltage | 1.2V |
| オンボードデバイス | Chipset | System on Chip |
| Network Controllers | Dual LAN with Intel® Ethernet Controller I225-IT2.5G, TSN, industrial grade |
| Audio | ALC 888S HD Audio |
| Graphics | Intel® UHD Graphics Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 2.0b (max. resolution up to 4096x2160@60Hz), HDMI 1.4b (max. resolution up to 4096x2160@30Hz), DP (Alt mode, max. resolution up to 4096x2304@60Hz) |
| 標準インターフェース | SATA | 1 SATA3 (6Gbps) port |
| LAN | 2 RJ45 2.5 Gigabit Ethernet LAN port |
| USB | 4 USB 2.0 ports (4 via headers) 4 USB 3.2 Gen2 ports (3 Rear Type A + 1 Rear Type C) |
| Video Output | 2 HDMI ports, 1 48-bit LVDS port, 1 DP (Alt mode) port, Dual channel 48-bit LVDS(max. resolution up to 1920x1200@60Hz), HDMI 2.0b (max. resolution up to 4096x2160@60Hz), HDMI 1.4b (max. resolution up to 4096x2160@30Hz), DP (Alt mode, max. resolution up to 4096x2304@60Hz) |
| Serial Port / Header | 4 COM Ports (4 headers), (2 x RS232, 2 RS232/422/485, RS-485 supports Auto flow control) |
| TPM | 1 TPM Chip |
| Others | 1 HD Audio header Mic-in/Headphone-out (Audio only support at 0~60C) 1 8-bit GPIO header 1 SMBus header 1 System Fan |
| 拡張スロット | PCI-E | N/A |
| M.2 | Key: B-Key , M-Key , E-Key M.2 2242/3042/2280 B-Key (USB3.0/2.0, SATA Gen3/PCI-E Gen3 x1) with nano SIM holder M.2 2230 E-Key (CNVi/PCI-E 3.0 x1/USB2) M.2 2242/2280 M-Key (PCI-E 4.0 x4), NVMe support |
| BIOS | BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.2 SMBIOS 3.0 or later UEFI 2.7 PCI FW 3.0 |
| マネージメント | Software | AMT, SuperDoctor® 5, vPro, Watchdog |
| System Management Software | SuperDoctor 5 |
| Power Configurations | +12-24V DC Power Input ACPI Power Management Control of power-on for recovery from AC power loss Force Power On by Jumper CPU thermal trip support for processor protection |
| システム監視機能 | Voltage | +12V, +3.3V, +5V, 1.2V (VDIMM), 3.3V standby, Monitors CPU voltages, System level control, System temperature, VBAT |
| Temperature | CPU thermal trip support |
| LED | Standby alert LED |
| Other Features | 8-pin 12-24V DC Power Connector, ACPI power management, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, M.2 NGFF connector, RoHS, System level control, WOL |
| 動作環境 | Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) |
パーツ仕様
| パーツリスト (Bulk Package) | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard | MBD-X12STN-C-WOHS | 1 |
X12STN-C-WOHS Motherboard |
| SATA Power Cable | CBL-PWEX-1030 | 1 |
SATA Power Cable 20cm |
| SATA cable | CBL-SAST-0881 | 1 |
SATA Data cable 25CM |
| DC IN Power cable | CBL-PWEX-1029 | 1 |
DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| パーツリスト (Retail Package) | |||
| 型番 | 数量 | 内容 | |
| Motherboard | MBD-X12STN-C-WOHS | 1 |
X12STN-C-WOHS Motherboard |
| Audio Cable | CBL-OTHR-0986 | 1 |
Audio Cable 20cm |
| COM Cable | CBL-CDAT-0665 | 1 |
COM Cable 20cm |
| SATA Power Cable | CBL-PWEX-1030 | 1 |
SATA Power Cable 20cm |
| USB Cable | CBL-CUSB-0983 | 1 |
USB2.0 cable 20cm |
| SATA cable | CBL-SAST-0881 | 1 |
SATA Data cable 25CM |
| QRG | TBD | 1 |
Motherboard Quick Reference Guide |
| DC IN Power cable | CBL-PWEX-1029 | 1 |
DC IN Power cable 2x4P 2.0mm pitch to 2x2P with 15cm |
| オプションパーツリスト | |||
| 型番 | 数量 | 内容 | |
| Power Adapter | MCP-250-10134-0N | 1 |
60W 12V 5A, AC to DC lockable power adapter,HF |
| Heatspreader | MCP-350-00008-0N | 1 |
Aluminum block Heatspreader for X11SWN |
| SATA Power Cable | CBL-PWEX-1032 | 1 |
SATA Power Cable 20cm |
| DC IN Power Cable (DC Jack) | CBL-PWEX-1110-15 | 1 |
DC power jack,vertical to 2x4, 2.0mm, 15cm |
