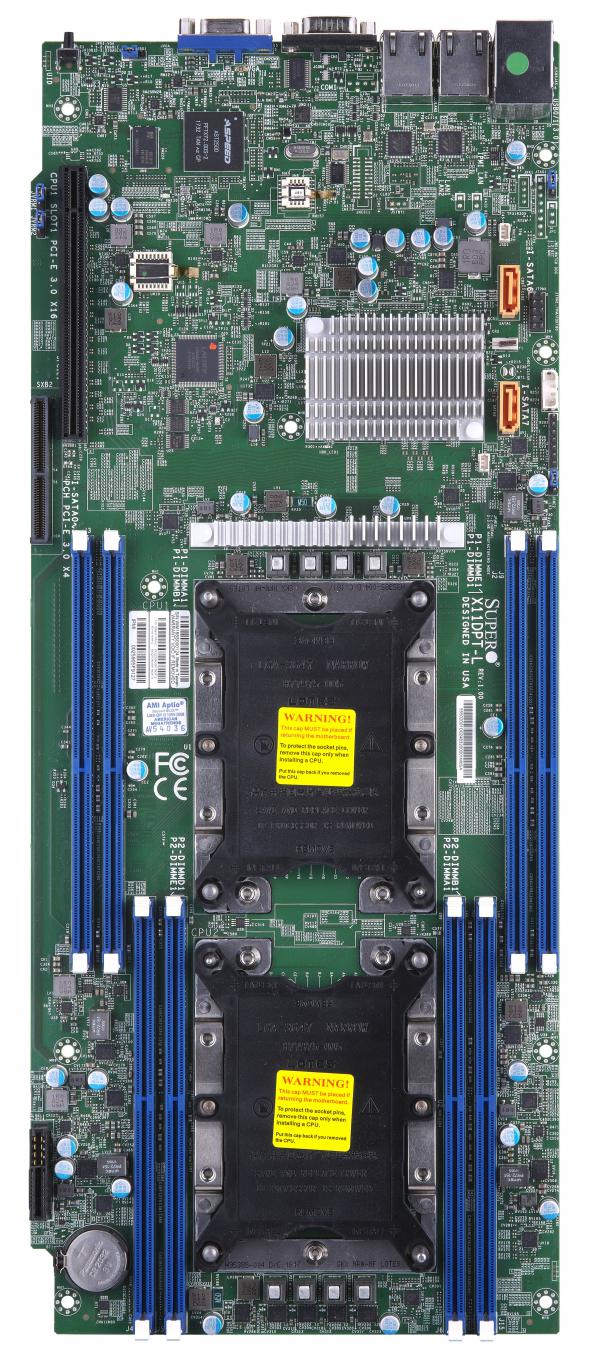

X11DPT-L
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA3647 (Socket P) |
| マザーボードサイズ | Proprietary（独自規格） |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | MBD-X11DPT-L | X11DPT-L |
|---|---|
| フォームファクター/外形寸法 | Form Factor | Proprietary Twin |
| Dimensions | 6.8" x 16.64" (17.27cm x 42.27cm) |
| プロセッサ/キャッシュ | CPU | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support Up to 140W TDP, 2 UPI up to 10.4 GT/s |
| Cores / Cache | Up to 28 cores / Up to 60 MB cache |
| メモリ | Memory Capacity | Up to 2TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots |
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
| DIMM Sizes | RDIMM: 64GB LRDIMM: 128GB 3DS LRDIMM: 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| オンボードデバイス | Chipset | Intel® C621 |
| SATA | Intel® C621 controller for 2 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with 1GbE with Marvell® 88E1512 |
| Graphics | Aspeed AST2500 BMC |
| 標準インターフェース | LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 2 USB 3.0 ports (2 rear) |
| Video Output | 1 VGA D-Sub Connector port |
| Serial Port / Header | 1 COM Port (1 rear) |
| TPM | 1 TPM Header |
| 拡張スロット | PCI-E | 1 PCI-E 3.0 x16 |
| BIOS | BIOS Type | AMI 32Mb SPI Flash ROM with UEFI |
| マネージメント | Software | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| System Mangement Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| システム監視機能 | Voltage | +3.3V, +5V, +5V standby, 1.2V (VDIMM), HT, Monitors CPU voltages, Supports system management utility, System level control, VBAT |
| FAN | Fan speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Adaptive Thermal Monitor, PECI 3.0 |
| LED | CPU / System Overheat LED, Suspend static indicator LED, Suspend static indicator LED |
| Other Features | CPU thermal trip support for processor protection |
| 動作環境 | Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| 拡張スロット | PCI-E | 1 PCI-E 3.0 x16 |
| BIOS | BIOS Type | AMI 32Mb SPI Flash ROM with UEFI |
| マネージメント | Software | Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, NMI, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| System Mangement Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| システム監視機能 | Voltage | +3.3V, +5V, +5V standby, 1.2V (VDIMM), HT, Monitors CPU voltages, Supports system management utility, System level control, VBAT |
| FAN | Fan speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Adaptive Thermal Monitor, PECI 3.0 |
| LED | CPU / System Overheat LED, Suspend static indicator LED, Suspend static indicator LED |
| Other Features | CPU thermal trip support for processor protection |
パーツ仕様
| パーツリスト (Bulk Package) | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard | MBD-X11DPT-L | 1 | X11DPT-L Motherboard |
