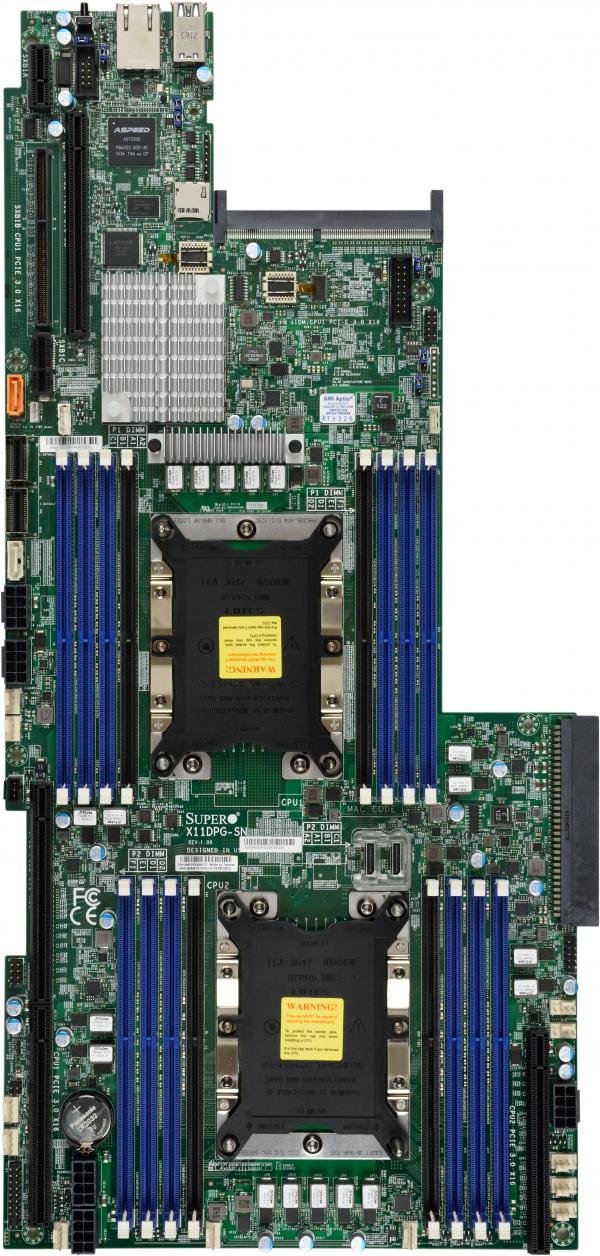

X11DPG-SN
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA3647 (Socket P) |
| マザーボードサイズ | Proprietary（独自規格） |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | MBD-X11DPG-SN | X11DPG-SN |
|---|---|
| フォームファクター/外形寸法 | Form Factor | Proprietary |
| Dimensions | 9.2" x 19.8" (23.37cm x 50.29cm) |
| プロセッサ/キャッシュ | CPU | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W TDP, 3 UPI up to 10.4 GT/s |
| Note | *2933 MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro |
| メモリ | Memory Capacity | Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only) |
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
| DIMM Sizes | RDIMM: 64GB, 128GB LRDIMM: 128GB 3DS LRDIMM: 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| オンボードデバイス | Chipset | Intel® C621 |
| SATA | Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Networking options provide via SIOM or AOC NIC |
| Graphics | Aspeed AST2500 BMC |
| 標準インターフェース | LAN | 1 RJ45 Dedicated IPMI LAN port |
| USB | 2 USB 3.0 ports (2 rear) |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | 1 TPM Header |
| 拡張スロット | PCI-E | 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 |
| BIOS | BIOS Type | AMI UEFI |
| マネージメント | Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| システム監視機能 | Voltage | +12V, +3.3V, +5V, +5V standby, 12 -fan status, Chassis intrusion header, Memory Voltages, Monitors CPU voltages, Supports system management utility, System temperature |
| FAN | 12x 4-pin fan headers (up to 12 fans), Overheat LED indication, PWM fan speed control |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI |
| LED | CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED |
| Other Features | ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID |
| 拡張スロット | PCI-E | 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 |
| BIOS | BIOS Type | AMI UEFI |
| マネージメント | Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
パーツ仕様
| パーツリスト (Bulk Package) | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard | MBD-X11DPG-SN | 1 | X11DPG-SN Motherboard |
