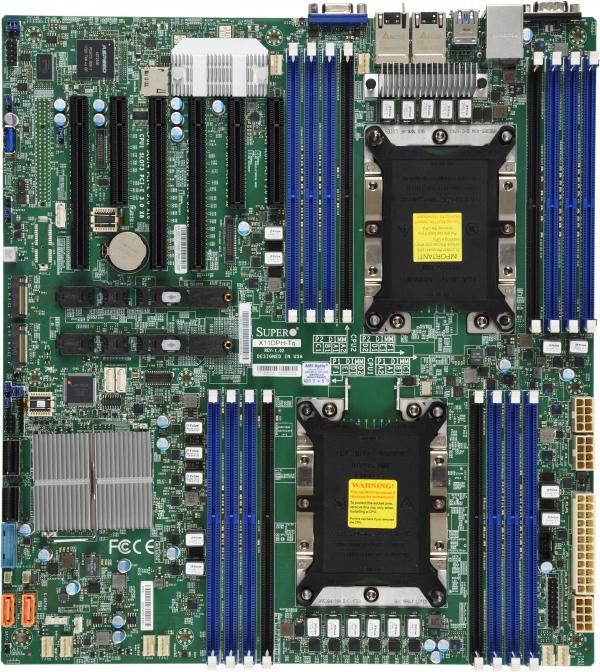

X11DPH-Tq
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | LGA3647 (Socket P) |
| マザーボードサイズ | Extended ATX (SSI EEB) |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | MBD-X11DPH-Tq | X11DPH-Tq |
|---|---|
| フォームファクター/外形寸法 | Form Factor | E-ATX |
| Dimensions | 12" x 13" (30.48cm x 33.02cm) |
| プロセッサ/キャッシュ | CPU | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W TDP, 3 UPI up to 10.4 GT/s |
| Cores / Cache | Up to 28 cores |
| Note | BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP |
| メモリ | Memory Capacity | Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots; Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); |
| Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
| DIMM Sizes | RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB, 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| オンボードデバイス | Chipset | Intel® C627 |
| SATA | Intel® C627 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| IPMI | ASPEED AST2500 |
| Network Controllers | Dual LAN with 10GBase-T with Intel® X722 + X557 |
| 標準インターフェース | SATA | 10 SATA3 (6Gbps) ports |
| LAN | 2 RJ45 10GBase-T ports |
| USB | 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A) |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 rear) |
| TPM | 1 TPM Header |
| 拡張スロット | PCI-E | 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 |
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 2242/2260/2280/22110 Key: M-Key (RAID 0,1 support) |
| BIOS | BIOS Type | AMI UEFI |
| マネージメント | Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| システム監視機能 | Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), Chipset Voltage, Memory Voltages, Monitors CPU voltages |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, PWM fan speed control |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, Thermal Control for 8 Fan Connectors |
| LED | BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, CPU thermal trip support for processor protection, Intel® QuickAssist Technology , NCSI header, RoHS, SDDC, UID, WOL |
| 動作環境 | Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| 拡張スロット | PCI-E | 3 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 |
| M.2 | M.2 Interface: 2 PCI-E 3.0 x4 Form Factor: 2242/2260/2280/22110 Key: M-Key (RAID 0,1 support) |
| BIOS | BIOS Type | AMI UEFI |
| マネージメント | Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
| システム監視機能 | Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), Chipset Voltage, Memory Voltages, Monitors CPU voltages |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8x fans with tachometer monitoring, PWM fan speed control |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, Thermal Control for 8 Fan Connectors |
| LED | BMC/IPMI Heartbeat LED, Power LED, UID/Remote UID |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, CPU thermal trip support for processor protection, Intel® QuickAssist Technology , NCSI header, RoHS, SDDC, UID, WOL |
パーツ仕様
| パーツリスト (Bulk Package) | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O SHIELD |
| I/O Cables | CBL-0044L | 2 | 57.5 cm SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00042-0N | 1 | STD I/O SHIELD |
| I/O Cables | CBL-0044L | 2 | 57.5 cm SATA FLAT S-S PBF |
