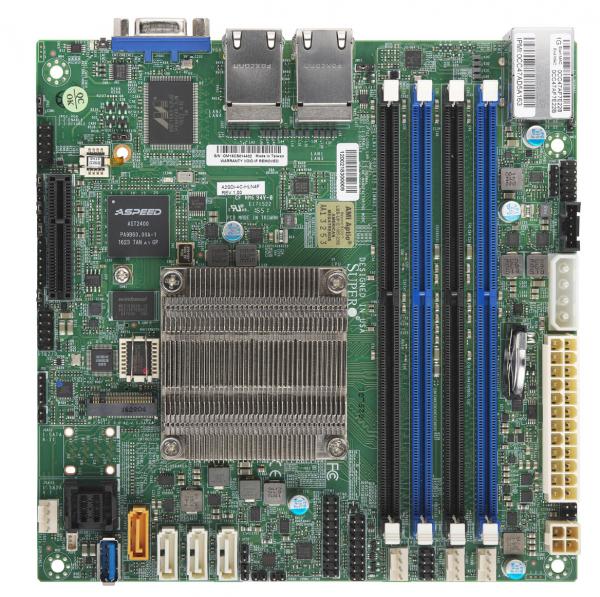

A2SDi-4C-HLN4F
| 製品種別 | マザーボード |
|---|---|
| CPUソケット数 | |
| CPU | |
| CPUソケット | FCBGA1310 |
| マザーボードサイズ | Mini-ITX |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | MBD-A2SDi-4C-HLN4F | A2SDi-4C-HLN4F |
|---|---|
| フォームファクター/外形寸法 | Form Factor | Mini-ITX |
| Dimensions | 6.7" x 6.7" (17.02cm x 17.02cm) |
| プロセッサ/キャッシュ | CPU | Intel® Atom™ Processor C3558. Single Socket FCBGA1310 supported, CPU TDP support 16W |
| Cores / Cache | 4 cores, 4 threads / 8MB cache |
| メモリ | Memory Capacity | Up to 256GB Registered ECC RDIMM and DDR4-2133MHz Up to 64GB Unbuffered ECC/non-ECC UDIMM, DDR4-2133MHz, in 4 DIMM slots |
| Memory Type | 2400/2133/1866/1600MHz, (Operating speed up to 2133MHz) |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| オンボードデバイス | Chipset | System on Chip |
| SATA | Up to 8 SATA3(6 Gbps) ports via SoC. *Number of SATA ports is configurable via BIOS setup: 4, 6, or 8. Total combined PCI-E lanes and SATA ports is up to 8. |
| IPMI | ASPEED AST2400 BMC |
| Network Controllers | Quad LAN with Intel® C3000 SoC1GbE |
| Graphics | Aspeed AST2400 BMC |
| 標準インターフェース | LAN | 4 RJ45 Gigabit Ethernet LAN ports |
| USB | 4 USB 2.0 ports (2 rear + 2 headers), 1 USB 3.0 ports ( + 1 Type A) |
| Video Output | 1 VGA port |
| Serial Port / Header | 1 COM Port (1 header) |
| TPM | TPM Header |
| 拡張スロット | PCI-E | 1 PCI-E 3.0 up to x4 (in x4 slot) *Number of PCI-E lane is configurable via BIOS setup: 0, 2, or 4. Total combined PCI-E lanes and SATA ports is up to 8. |
| M.2 | Interface: PCI-E 3.0 x2 and SATA Form Factor: M-Key 2242, 2280 |
| BIOS | BIOS Type | AMI UEFI |
| BIOS Features | UEFI 2.4 SMBIOS 2.7.1 |
| マネージメント | Software | IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog |
| Power Configurations | ATX Power connector +12V DC Power Input CPU thermal trip support for processor protection Power-on mode for AC power recovery |
| システム監視機能 | Voltage | +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT |
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors |
| Temperature | CPU thermal trip support |
| LED | UID/Remote UID |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Innovation Engine, Intel® QuickAssist Technology , M.2 NGFF connector, RoHS, SDDC, System level control, UID, WOL |
| 動作環境 | Operating Temperature Range | 0°C ~ 60°C (32°F ~ 140°F) |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) |
| Operating Relative Humidity Range | 10% ~ 85% (non-condensing) |
| Non-Operating Relative Humidity Range | 10% ~ 95% (non-condensing) |
| 拡張スロット | PCI-E | 1 PCI-E 3.0 up to x4 (in x4 slot) *Number of PCI-E lane is configurable via BIOS setup: 0, 2, or 4. Total combined PCI-E lanes and SATA ports is up to 8. |
| M.2 | Interface: PCI-E 3.0 x2 and SATA Form Factor: M-Key 2242, 2280 |
| BIOS | BIOS Type | AMI UEFI |
| BIOS Features | UEFI 2.4 SMBIOS 2.7.1 |
| マネージメント | Software | IPMI2.0, KVM with dedicated LAN, NMI, SuperDoctor® 5, Watchdog |
| Power Configurations | ATX Power connector +12V DC Power Input CPU thermal trip support for processor protection Power-on mode for AC power recovery |
| システム監視機能 | Voltage | +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 3.3V standby, 4 -fan status, 4 fans with tachometer monitoring, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, System temperature, VBAT |
| FAN | 4x 4-pin fan headers (up to 4 fans), 4 fans with tachometer monitoring, Dual Cooling Zone, Fan speed control, Pulse Width Modulated (PWM) fan connectors, Status monitoring for speed control, Support 3-pin fans (w/o speed control), System level control, Thermal control tachometer fan connectors |
| Temperature | CPU thermal trip support |
| LED | UID/Remote UID |
| Other Features | 12V DC or ATX Power Source, 4-pin 12v DC power connector, ATX Power connector, Chassis intrusion detection, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Dual Cooling Zones, Innovation Engine, Intel® QuickAssist Technology , M.2 NGFF connector, RoHS, SDDC, System level control, UID, WOL |
パーツ仕様
| パーツリスト (Bulk Package) | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Motherboard | MBD-A2SDi-4C-HLN4F | 1 | A2SDi-4C-HLN4F Motherboard |
| SATA Cables | CBL-0044L | 2 | 57.5CM SATA FLAT S-S PBF |
| I/O Shield | MCP-260-00084-0N | 1 | Standard I/O Shield for A2SDi-4C-HLN4F |
| パーツリスト (Retail Package) | |||
| 型番 | 数量 | 内容 | |
| QRG | MNL-1951-QRG | 1 | Motherboard Quick Reference Guide |
| SATA Cables | CBL-SAST-0616 | 1 | MINI SAS HD-4 SATA, INT, 50CM, 50CM SB, 30AWG |
