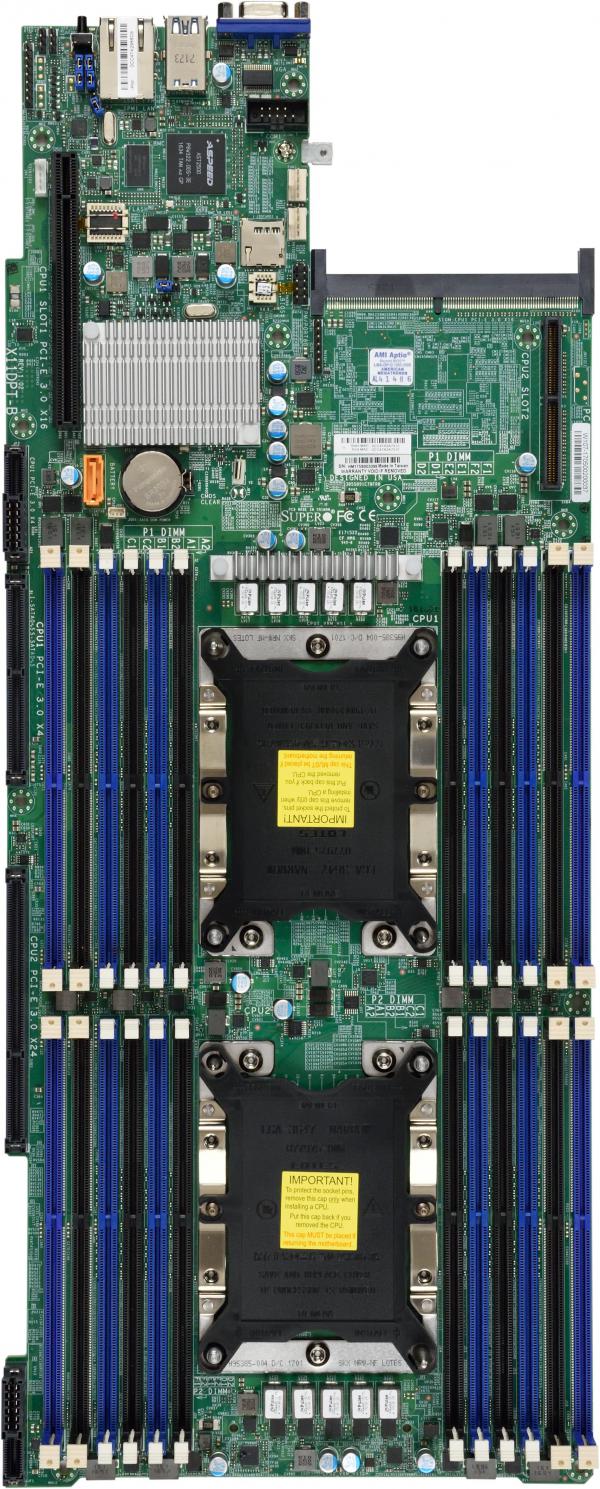

X11DPT-B
製品種別 | マザーボード |
---|---|
CPUソケット数 | |
CPU | |
CPUソケット | LGA3647 (Socket P) |
マザーボードサイズ | Proprietary(独自規格) |
製品説明 |
製品仕様
Product SKUs | MBD-X11DPT-B | X11DPT-B |
---|---|
フォームファクター/外形寸法 | Form Factor | Proprietary Twin |
Dimensions | 7.62" x 18.86" (19.35cm x 47.9cm) |
プロセッサ/キャッシュ | CPU | 2nd Generation Intel® Xeon® Scalable Processors (Cascade Lake-SP), Intel® Xeon® Scalable Processors. Dual Socket P (LGA 3647) supported, CPU TDP support 205W TDP, 2 UPI up to 10.4 GT/s |
Cores / Cache | Up to 28 cores |
Note | BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP |
メモリ | Memory Capacity | Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz, in 24 DIMM slots; Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only); |
Memory Type | 2933/2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM |
DIMM Sizes | RDIMM: 64GB LRDIMM: 64GB 3DS LRDIMM: 128GB, 256GB |
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
オンボードデバイス | Chipset | Intel® C621 |
SATA | Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
IPMI | ASPEED AST2500 |
Network Controllers | Single LAN with Networking options provided via SIOM module |
Graphics | Aspeed AST2500 BMC |
標準インターフェース | SATA | 8 SATA3 (6Gbps) port |
USB | 2 USB 3.0 ports (2 rear) |
Video Output | 1 VGA port |
TPM | 1 TPM Header |
拡張スロット | PCI-E | 1 PCI-E 3.0 x16 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot 1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card), 1 PCI-E 3.0 x16 SIOM LAN Networking Slot, 1 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card) |
BIOS | BIOS Type | AMI UEFI |
マネージメント | Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
Power Configurations | ACPI Power Management |
システム監視機能 | Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), Chipset Voltage, Memory Voltages, Monitors CPU voltages |
FAN | 2x 4-pin fan headers (up to 2 fans), PWM fan speed control |
Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment |
LED | BMC/IPMI Heartbeat LED, UID/Remote UID |
Other Features | Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, SDDC, UID, WOL |
動作環境 | Operating Temperature Range | 10°C - 35°C (50°F - 95°F) |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range | 8% - 90% (non-condensing) |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
拡張スロット | PCI-E | 1 PCI-E 3.0 x16 Left Riser Slot, 1 PCI-E 3.0 x16 Right Riser Slot 1 PCI-E 3.0 x24 Proprietary Slot (for Supermicro storage add-on card), 1 PCI-E 3.0 x16 SIOM LAN Networking Slot, 1 PCI-E 3.0 x8 Proprietary Slot (For M.2 add-on card) |
BIOS | BIOS Type | AMI UEFI |
マネージメント | Software | Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog |
Power Configurations | ACPI Power Management |
システム監視機能 | Voltage | +1.8V, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), Chipset Voltage, Memory Voltages, Monitors CPU voltages |
FAN | 2x 4-pin fan headers (up to 2 fans), PWM fan speed control |
Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment |
LED | BMC/IPMI Heartbeat LED, UID/Remote UID |
Other Features | Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, SDDC, UID, WOL |
パーツ仕様
パーツリスト (Bulk Package) | |||
---|---|---|---|
型番 | 数量 | 内容 | |
Motherboard | MBD-X11DPT-B | 1 | X11DPT-B Motherboard |
オプションパーツリスト | |||
型番 | 数量 | 内容 | |
TPM security module (optional, not included) | AOM-TPM-9670V | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
TPM security module (optional, not included) | AOM-TPM-9670H | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with horizontal form factor |
TPM security module (optional, not included) | AOM-TPM-9671V | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor |
TPM security module (optional, not included) | AOM-TPM-9671H | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with horizontal form factor |
