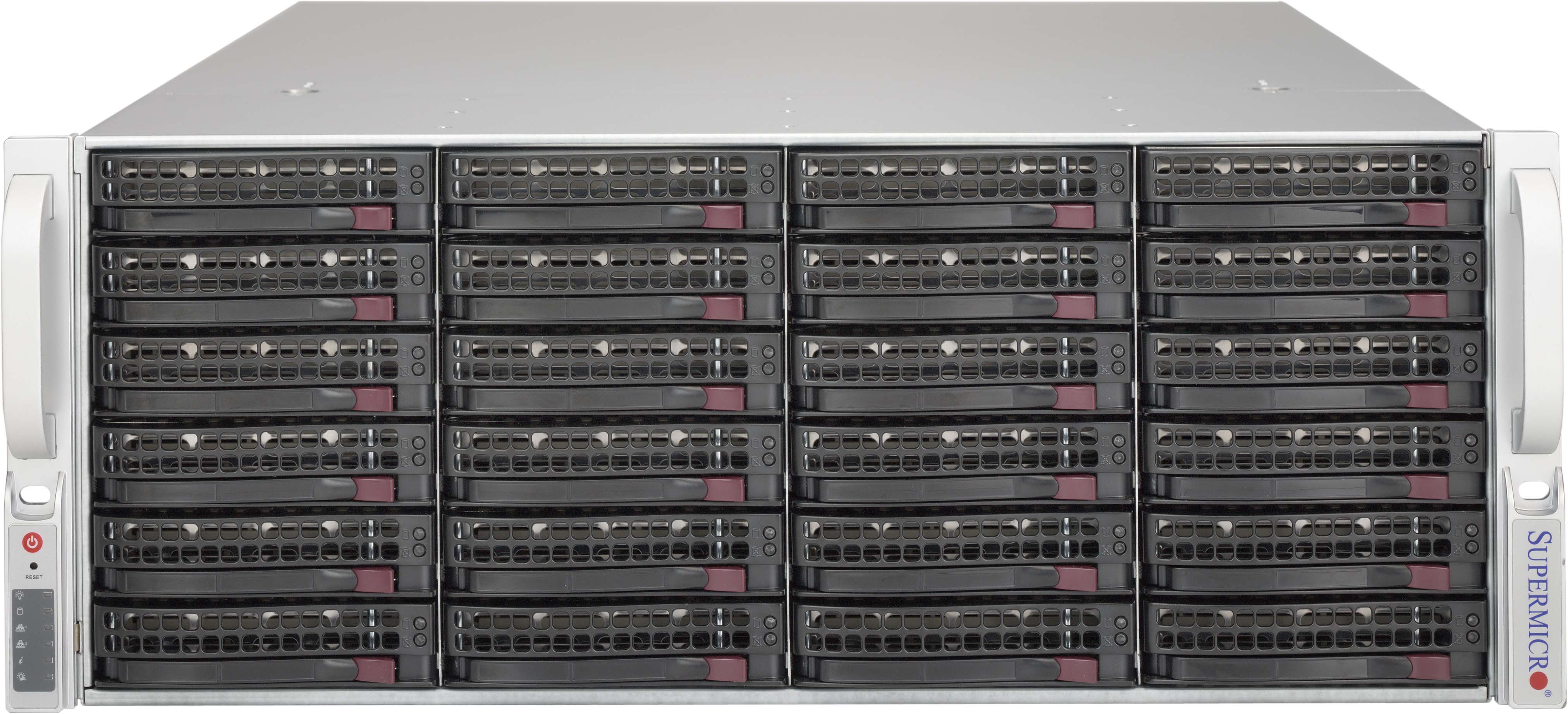

SC846BE1C-R1K03JBOD
製品種別 | シャーシ |
---|---|
筐体サイズ | 4U |
ストレージ仕様 | |
電源仕様 | リダンダント電源 |
製品説明 |
製品仕様
Product SKUs | CSE-846BE1C-R1K03JBOD | SuperChassis 846BE1C-R1K03JBOD |
---|---|
外形寸法/重量 | Height | 7" (178 mm) |
Width | 17.2" (437 mm) |
Depth | 26" (660 mm) |
Net Weight | 60 lbs (27.22 kg) |
Gross Weight | 80 lbs (36.29 kg) |
Packaging (W x H x L) | 27" (686 mm) x 14.8" (376 mm) x 37.3" (947 mm) |
Available Color | Black |
フロントパネル | Buttons | Power On/Off button System Reset Button Unit Identification (UID) button |
LEDs | 1 Network Activity LEDs |
Systems Cooling | Fans | 3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud |
System Monitoring | System Monitoring |
|
Operating Environment (System) | Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range | 8% - 90% (non-condensing) |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
電源 | Power Supply | 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus |
Power Efficiency | 96% |
Total Output Power and Input | 800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac 1000W with Input 200 - 240Vdc |
AC Input Frequency | 50-60Hz |
Dimensions (L x W x H) | 336 x 76 x 40 mm |
Output Type | Backplanes (gold finger) |
+12V | Max: 66.7A (100Vac - 127Vac) Max: 83A (200Vac - 240Vac) Max: 83A (200 - 240) |
+5Vsb | Max: 4A / Min: 0A |
Power Distributor | PDB-PT846-2824 |
Certification | Titanium Certified |
Systems Cooling | Fans | 3 x 8cm hot-swap redundant PWM cooling fan(s) 2 x 8cm hot-swap exhaust fan(s) & air shroud |
System Monitoring | System Monitoring |
|
Operating Environment (System) | Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range | 8% - 90% (non-condensing) |
Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
電源 | Power Supply | 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus |
Power Efficiency | 96% |
Total Output Power and Input | 800W with Input 100 - 127Vac 1000W with Input 200 - 240Vac 1000W with Input 200 - 240Vdc |
AC Input Frequency | 50-60Hz |
Dimensions (L x W x H) | 336 x 76 x 40 mm |
Output Type | Backplanes (gold finger) |
+12V | Max: 66.7A (100Vac - 127Vac) Max: 83A (200Vac - 240Vac) Max: 83A (200 - 240) |
+5Vsb | Max: 4A / Min: 0A |
Power Distributor | PDB-PT846-2824 |
Certification | Titanium Certified |
パーツ仕様
Standard Parts List | |||
---|---|---|---|
型番 | 数量 | 内容 | |
Chassis | CSE-846BE1C-R1K03JBOD | 1 | 4U Chassis (Black) |
Backplane | BPN-SAS3-846EL1 | 1 | SAS 12G single expander backplane, with LSI SAS3 expander, support 24x 3.5 |
Control Board | CSE-PTJBOD-CB3 | 1 | CSE-PTJBOD-CB3 |
Cable 1 | CBL-NTWK-0587 | 1 | CAT 5e RJ45 extension cable for SC847D JBOD internal Male to Female adapter with PCBA 500mm,24AWG,HF,RoHS/REACH,PBF |
Cable 2 | CBL-CDAT-0601 | 1 | 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS/REACH,PBF |
Cable 3 | CBL-0296L | 2 | 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG |
Cable 4 | CBL-SAST-0593-01 | 4 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI],RoHS/REACH |
Power Supply | PWS-1K03A-1R | 2 | 1U 1000W Redundant Power Supply Titanium W/PMbus 76x365x40mm,RoHS/REACH |
Power Distributor | PDB-PT846-2824 | 1 | PDB with 23pairs input connector support SC846B |
Air Shroud | MCP-310-49003-0N | 1 | SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB |
Cable 5 | CBL-0071L | 1 | ROUND 16 pin TO 16 PIN RIBBON FP CABLE 75cm. 28AWG |
Cable 6 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
Cable 7 | CBL-0217L | 1 | 16 pin control panel converter cable for SC826,846, 23.5cm, PBF |
Fan 1 | FAN-0127L4 | 3 | 80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing |
Fan 2 | FAN-0125L4 | 2 | 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing |
Front Panel | MCP-280-82601-0N | 1 | Front control board adapter (TB826) for SC216,826,936,846 |
Drive Tray(s) | MCP-220-00075-0B | 2 4 |
Black gen 5.5 hot-swap 3.5\" HDD tray |
Mounting Rails | MCP-410-00007-0N | 1 | Rail screw bag |
Mounting Rails | MCP-290-00057-0N | 1 | Rail set, quick/quick, default for 4U 17.2 |
Rear Window | MCP-240-84602-0N | 1 | 846B rear window which support 2 X 2.5\" HDD module and DVD |
オプションパーツリスト | |||
型番 | 数量 | 内容 | |
Cable | CBL-SAST-0573 | - | External mini SAS HD to external mini SAS HD cable 28AWG (1M) |
Cable | CBL-SAST-0690 | - | 2m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
Cable | CBL-SAST-0677 | - | 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
