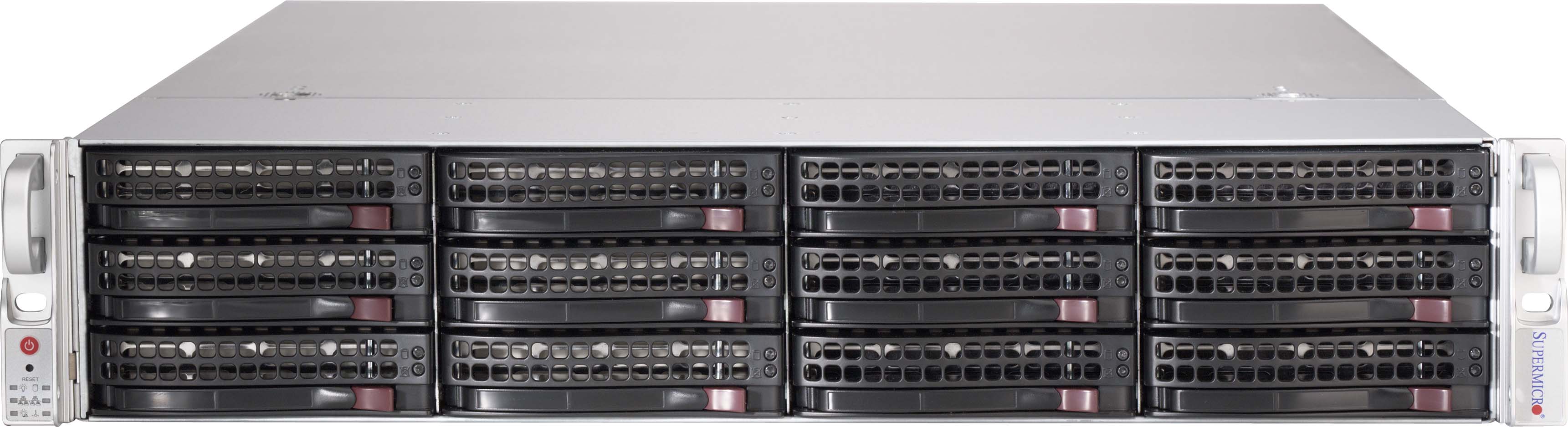

SC826BE2C-R741JBOD
| 製品種別 | シャーシ |
|---|---|
| 筐体サイズ | 2U |
| ストレージ仕様 | |
| 電源仕様 | リダンダント電源 |
| 製品説明 |
Supermicroについて
製品仕様
| Product SKUs | CSE-826BE2C-R741JBOD | SuperChassis 826BE2C-R741JBOD |
|---|---|
| 外形寸法/重量 | Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 25.5" (647 mm) |
| Net Weight | 55 lbs (24.95 kg) |
| Gross Weight | 60 lbs (27.22 kg) |
| Packaging (W x H x L) | 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm) |
| Available Color | Black |
| フロントパネル | Buttons | Power On/Off button System Reset Button Unit Identification (UID) button |
| LEDs | 1 Network Activity LEDs |
| Systems Cooling | Fans | 3 x 80x38mm hot-swap cooling fan(s) |
| System Monitoring | System Monitoring |
|
| Operating Environment (System) | Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| 電源 | Power Supply | 1U 740W Redundant Platinum Power Supply W/PMbus |
| Power Efficiency | 94% |
| Total Output Power and Input | 740W with Input 100 - 240Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
| Output Type | Backplanes (gold finger) |
| -12V | Max: NAA |
| +12V | Max: 61.7A / Min: 0.2A (100Vac - 240Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| +12Vsb | Max: NAA |
| Power Distributor | PDB-PT826-8824 O/P: 12V/135 +5V Max: 40 +3.3V Max: 24 -12V Max: 0.6 |
| Certification | Platinum Certified |
| Systems Cooling | Fans | 3 x 80x38mm hot-swap cooling fan(s) |
| System Monitoring | System Monitoring |
|
| Operating Environment (System) | Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| 電源 | Power Supply | 1U 740W Redundant Platinum Power Supply W/PMbus |
| Power Efficiency | 94% |
| Total Output Power and Input | 740W with Input 100 - 240Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
| Output Type | Backplanes (gold finger) |
| -12V | Max: NAA |
| +12V | Max: 61.7A / Min: 0.2A (100Vac - 240Vac) |
| +5Vsb | Max: 4A / Min: 0A |
| +12Vsb | Max: NAA |
| Power Distributor | PDB-PT826-8824 O/P: 12V/135 +5V Max: 40 +3.3V Max: 24 -12V Max: 0.6 |
| Certification | Platinum Certified |
パーツ仕様
| Standard Parts List | |||
|---|---|---|---|
| 型番 | 数量 | 内容 | |
| Chassis | CSE-826BE2C-R741JBOD | 1 | 2U Chassis (Black) |
| Backplane | BPN-SAS3-826EL2 | 1 | SAS 12G dual-expander backplane, with 2x LSISAS3x28 expanders, support 12x 3.5 |
| Control Board | CSE-PTJBOD-CB3 | 1 | CSE-PTJBOD-CB3 |
| Cable 1 | CBL-CDAT-0601 | 1 | 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS/REACH,PBF |
| Cable 2 | CBL-SAST-0593 | 4 | Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF |
| Cable 3 | CBL-NTWK-0587 | 1 | CAT 5e RJ45 extension cable for SC847D JBOD internal Male to Female adapter with PCBA 500mm,24AWG,HF,RoHS/REACH,PBF |
| Cable 4 | CBL-SAST-0532 | 4 | Internal Mini-SAS HD to Mini-SAS HD 50cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF |
| Power Supply | PWS-741P-1R | 2 | 1U740W Platinum Redundant Single Output |
| Power Distributor | PDB-PT826-8824 | 1 | PDB with longer 24pin for SC826B |
| Air Shroud | MCP-310-29001-0N | 1 | SC825/826/216/213 Intel DP X9,X8 PC air shroud 1368x13/12x13 |
| Fan 1 | FAN-0126L4 | 3 | 80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing |
| Drive Tray(s) | MCP-220-00075-0B | 1 2 |
Black gen 5.5 hot-swap 3.5\" HDD tray |
| Mounting Rails | MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2\"W |
| Rear Window | MCP-240-82608-0N | 1 | 216B/826B LP rear window,RoHS/REACH,PBF |
| オプションパーツリスト | |||
| 型番 | 数量 | 内容 | |
| Cable | CBL-SAST-0573 | - | External mini SAS HD to external mini SAS HD cable 28AWG (1M) |
| Cable | CBL-SAST-0690 | - | 2m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
| Cable | CBL-SAST-0677 | - | 3m external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
