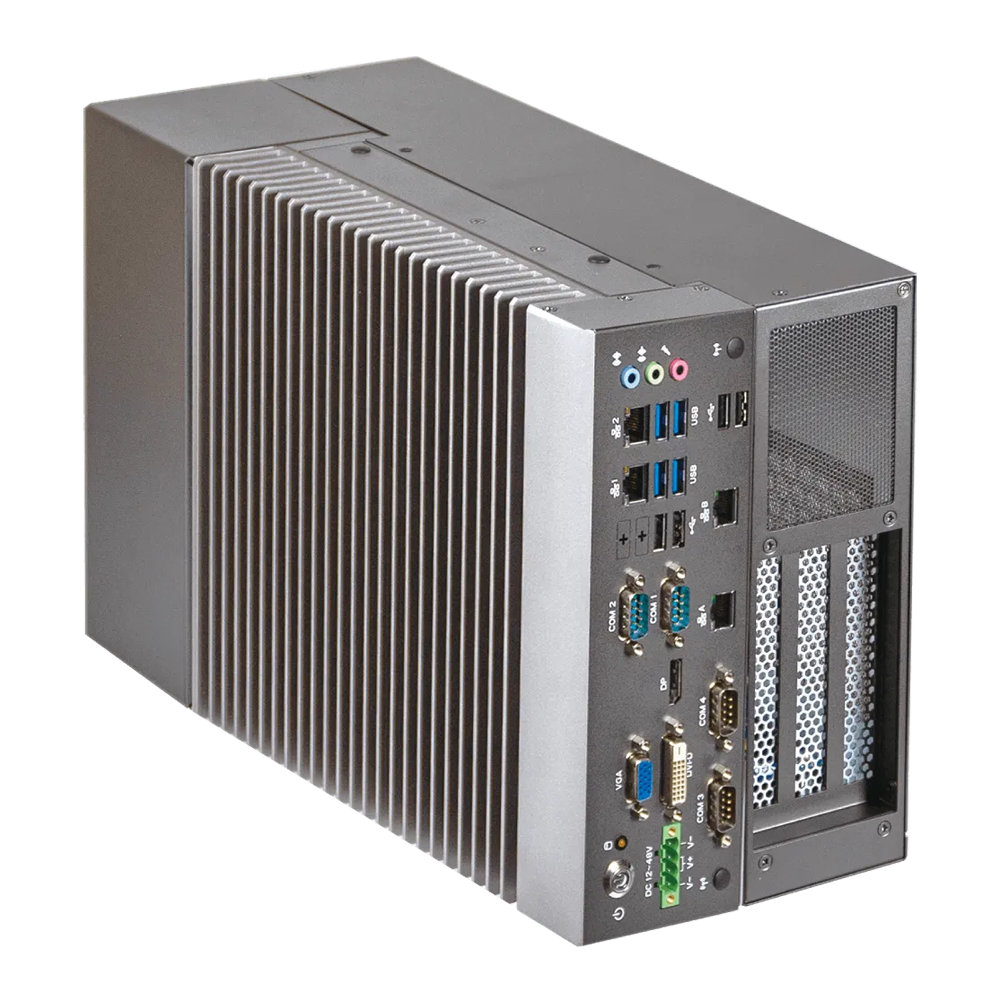

QBiX-JMB-CFLA310HG-A1
| 製品種別 | 産業用PC |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | BOX |
| 最大GPU数 | |
| 電源仕様 | DC電源 (or ACアダプタ) |
| 用途/特長 | |
| 製品説明 | Industrial system with Intel® H310 Chipset support of Intel® 9th/8th Gen Processors and Discrete GFX support |
製品仕様
| Operating Properties | Operating temperature: -20°C to 60°C (CPU TDP 35W, Add external GFX card Kits) Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
|---|---|
| CPU | Support for 9th/8th Generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package TDP under 65W |
| Chipset | Intel® H310 Express Chipset |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual channel DDR4 2666/2400 MHz memory modules |
| LAN | 1 x GbE LAN Port (Intel® I219V) 3 x GbE LAN Ports (Intel® I211AT) |
| Video | Integrated Graphics Processor - Intel® HD Graphics support: 1 x DP port, supporting a maximum resolution of 4096x2160 @30Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1080 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module 1 x PCIe slot -- Discrete riser card support |
| Rear I/O | — |
| Packaging Content | Carton size: 460 x 315 x 279 (mm) Packing Capacity: 1pc Including: Power Cable #20 350mm x 1 (P/N: 25CRI-350902-H3R) Screw M3x4L x 12 (P/N: 25984G-1C014-S00) Screw M3x5L x 8 (P/N: 25983G-1C011-S00) Screw #6-32x5L x 3 (P/N: 2598EG-1C002-S00) Terminal Blocks Male Plug x 1 (P/N: 25IO0-2ESDV0-D2R ) |
| Ordering Information | System : 9BQJH310AMR-SI & 6BQJH310APR-SI (Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com) |
| Storage | 3 x 2.5" HDD/SSD (SATA 6Gb/s) |
| Front I/O | 1 x Power Switch/Power/HDD LED 3 x Audio Jacks (Line in, Line out, Mic in) 1 x Display port 1 x DVI-D 1 x VGA 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 2 x COM Ports (RS-232) 4 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 4 x USB 2.0 1 x 4-pin Terminal Block 2 x External Antenna Holes (Optional) |
| Dimension | 224W x 343D x 146H(mm) - Discrete GFX max 250W support (Optional) |
| Remark | TPM 2.0 module P/N: 9CTM000NR-00 |
