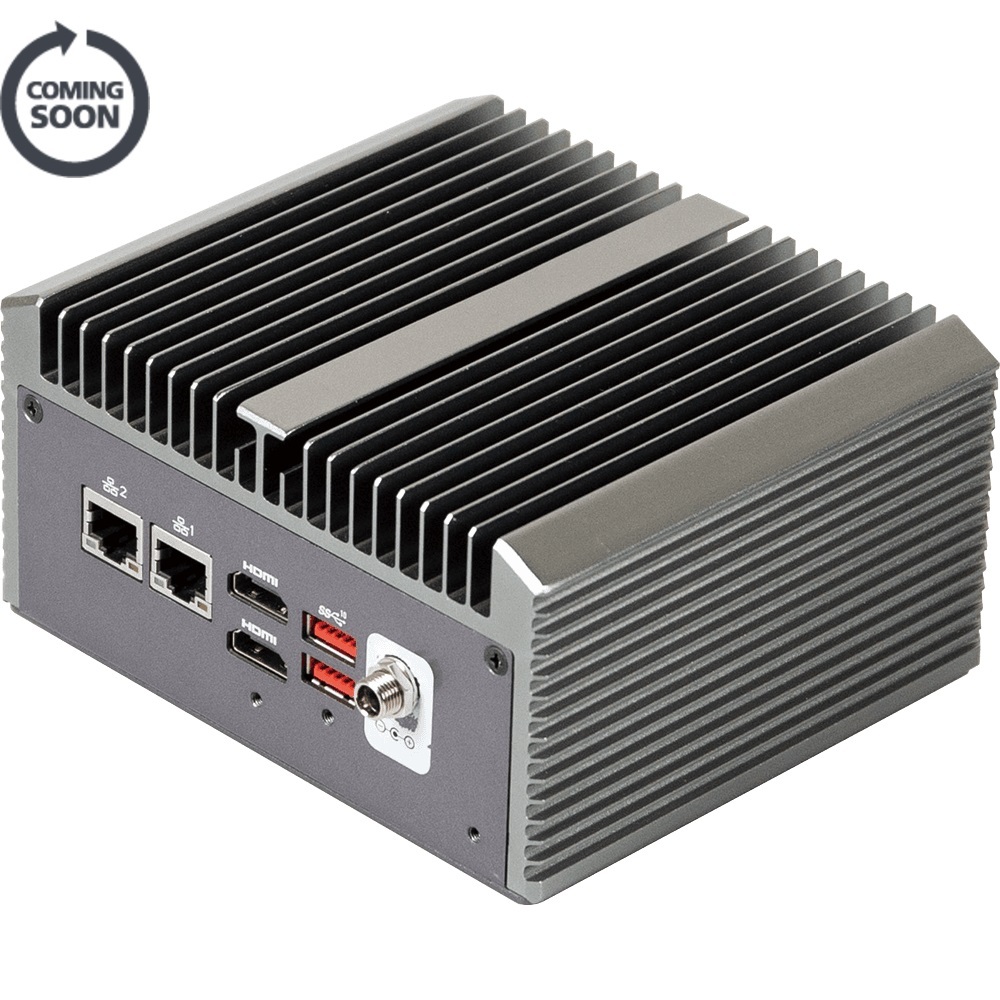

QBiX-TGLA1115G4E-A1
| 製品種別 | 産業用PC |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | BOX |
| 最大GPU数 | |
| 電源仕様 | ACアダプタ電源 |
| 用途/特長 | |
| 製品説明 | Industrial system with Intel® Core™ i3-1115G4E Processor, Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports |
製品仕様
| CPU | Intel® Core™ i3-1115G4E Processor 10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz TDP 15W 6 MB Smart Cache |
|---|---|
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| LAN | 2 x GbE LAN ports (Intel® i219V and Realtek® RTL8111HS) |
| Video | Integrated Graphics Processor - Intel® UHD Graphics For 11th Gen Intel Processor : 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
| Rear I/O | 2 x HDMI 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 1 x Screw type DC Jack |
| Front I/O | 2 x USB 3.2 Gen 2x1 1 x Power button with LED 2 x External Antenna Hole (optional) 1 x HDD LED 1 x COM (RS-232/422/485) 1 x Headphone Jack |
| Dimension | 138W x 118D x 74.2H (mm) |
