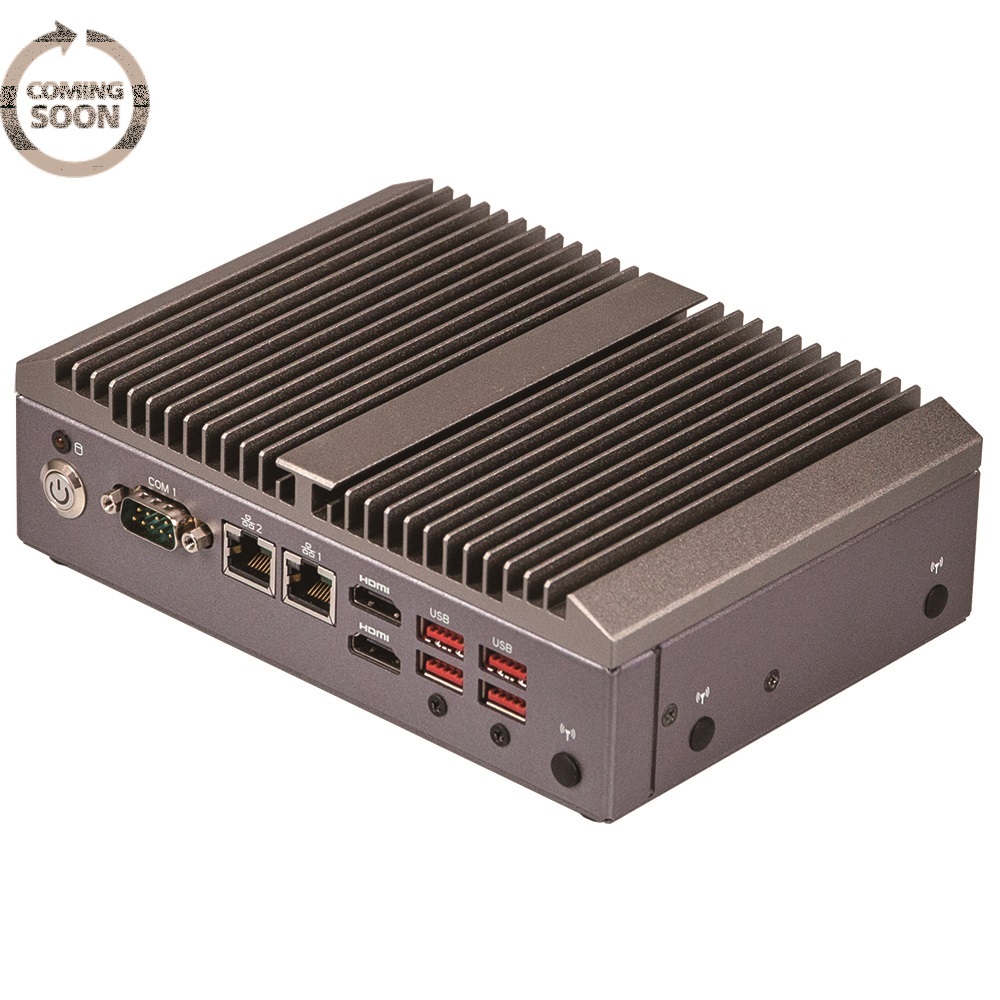

QBiX-Pro-TGLB1115G4EH-A1
| 製品種別 | 産業用PC |
|---|---|
| CPUソケット数 | |
| CPU | |
| 筐体サイズ | BOX |
| 最大GPU数 | |
| 電源仕様 | DC電源 (or ACアダプタ) |
| 用途/特長 | |
| 製品説明 | Industrial system |
製品仕様
| Operating Properties | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
|---|---|
| CPU | Intel® Core™ i3-1115G4E Processor 10nm SuperFin, 2 cores, 4 threads, up to 3.9 GHz TDP 28W |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| LAN | 2 x GbE LAN ports (Intel® i219V and Intel® i211AT) |
| Video | Integrated Graphics Processor - Intel® UHD Graphics 620: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |
| Rear I/O | 2 x USB 2.0 2 x COM Ports (RS-232) 1 x GPIO (8 bits) 1 x Headphone Jack 1 x 3-pin Terminal block |
| Packaging Content | Box Packing Capacity: 5pcs Carton size: 505x333x231(mm) |
| Ordering Information | 6BQP1115AMR-SI (Box Packing) |
| Storage | 1 x 2.5” HDD/SSD (SATA 6Gb/s) |
| Front I/O | 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 2 x HDMI 1 x Power button with LED 1 x HDD LED 1 x COM Port (RS-232/422/485 and RI/5V/12V) |
| Dimension | 178W x 125D x 52.7H(mm) |
| Side I/O | 2 x External Antenna Hole (Optional) |
